FRAMEO
Modular shelter for public transport stops corresponding to the aesthetic and functional demands placed on the modern equipment of 21st-century cities. With its sophisticated minimalist design and almost transparent appearance, it is especially suitable for the exposed environment of busy city centers. The supporting structure of the stop shelter consists of a massive frame made of steel profiles, which supports the roof as well as vertical glass or wooden panels and a bench with a backrest. The shelter can be supplemented with one or two side panels or a CityLight advertising panel. Water from the roof structure is drained by the hind legs above the ground.

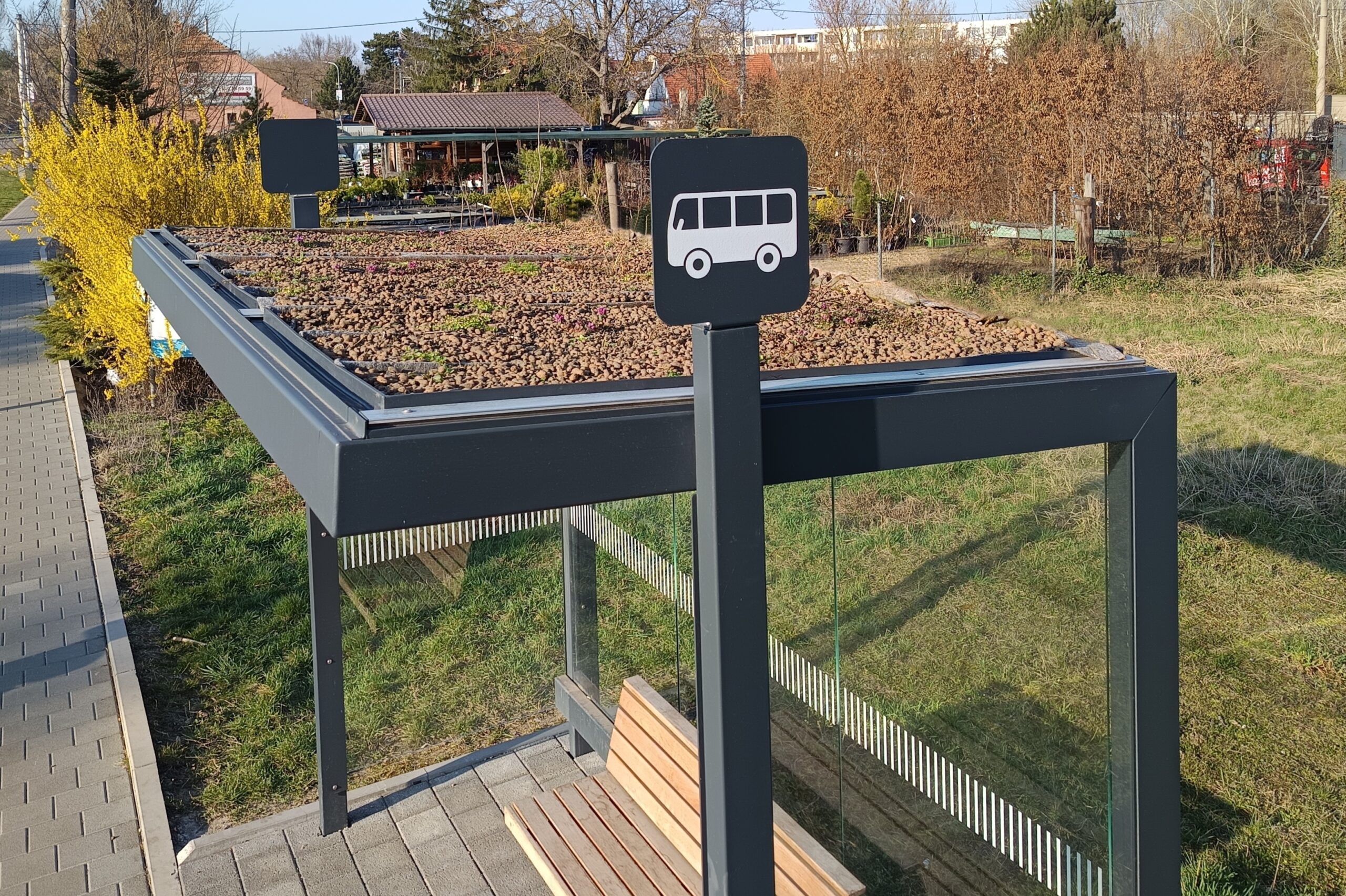

The galvanized steel supporting structure is provided with a powder coating. The wall panels are made of safety tempered glass or solid wood. Satinato safety tempered glass is used for roof glazing. We also offer a variant with a so-called green roof, where instead of glazing, the roof is filled with a retention mat for fitting with a stonecrop carpet. The bench is made of laths of rectangular and trapezoidal cross-section made of solid wood, fastened with stainless steel screws to the supporting cantilever structure. At the bottom of the webs are flanged for concealed anchoring to the ground below ground level.
FRAMEO bus shelters in various designs are installed, for example, in Neratovice, Středokluky, and Bílovec.
ZPF301
ZPF301
L×W×H: 3120×1805×2536 mm
3 modules / without side panels / glass back / glass roof
ZPF302
ZPF302
L×W×H: 3152×1805×2536 mm
3 modules / 2x glass side panel / glass back / glass roof
ZPF321
ZPF321
L×W×H: 3264×1805×2574 mm
3 modules / without side panels / glass back / green roof
ZPF322
ZPF322
L×W×H: 3264×1805×2574 mm
3 modules / 2 x glass side panel / glass back / green roof

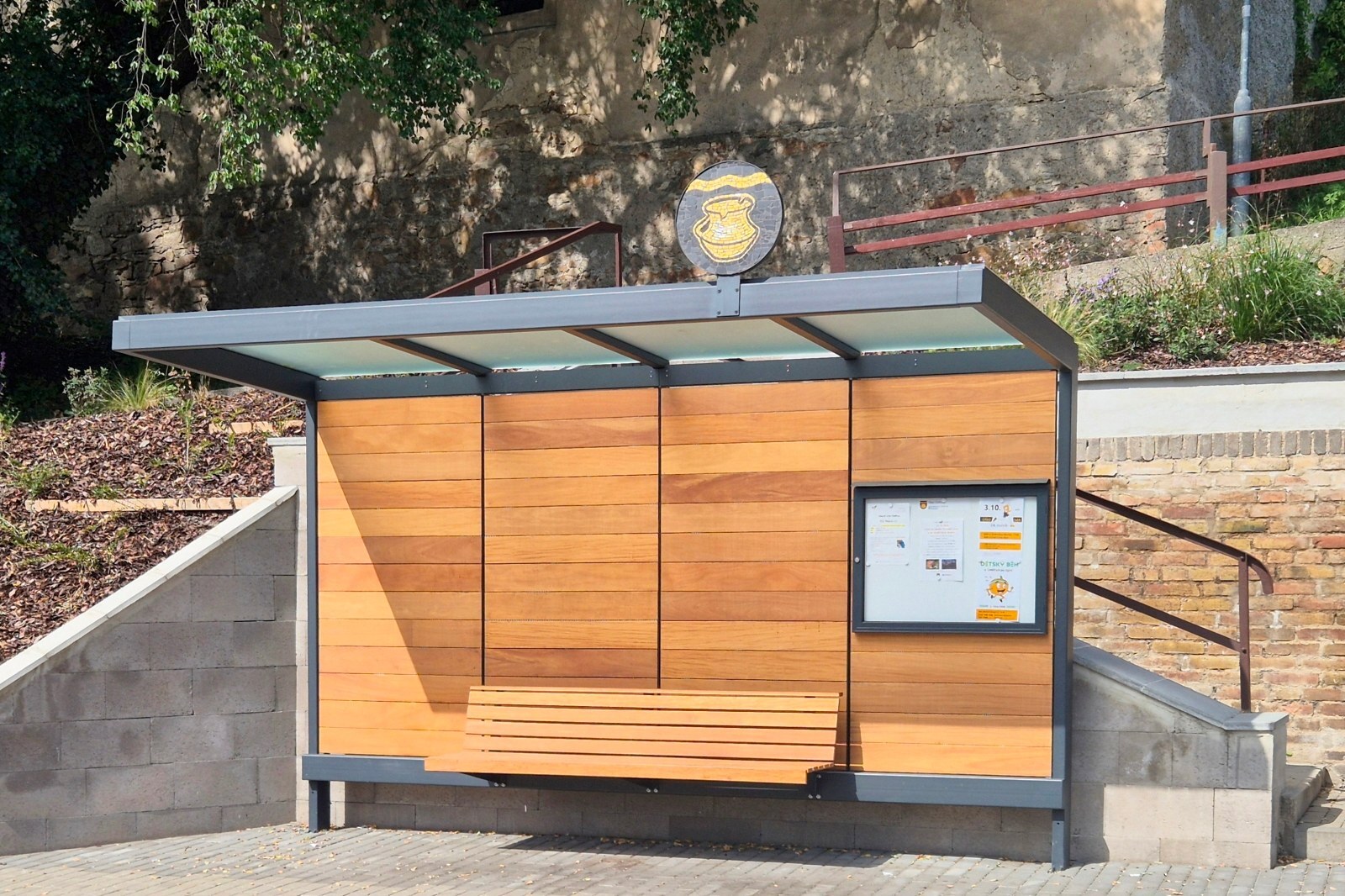

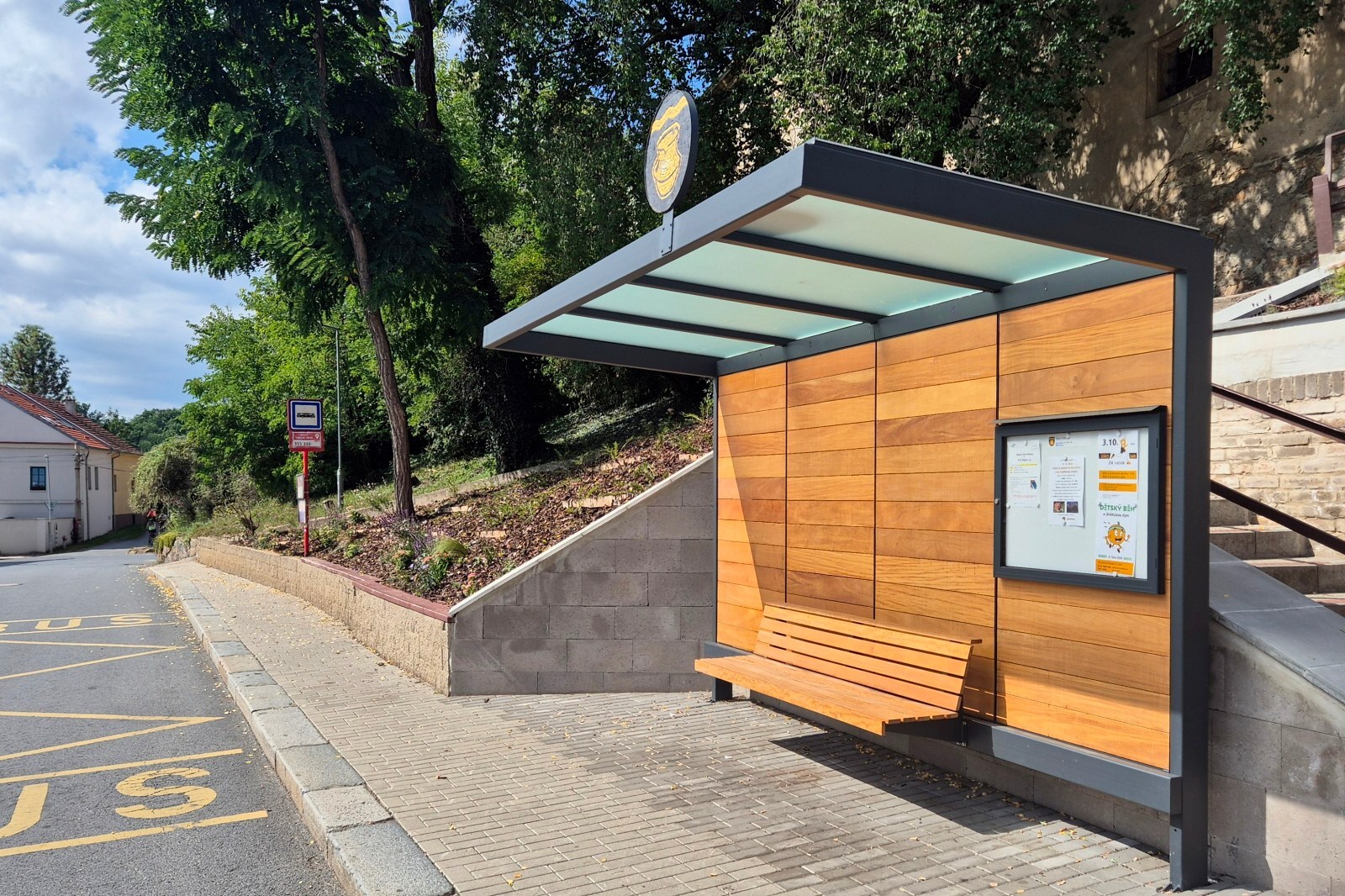

ZPF331
ZPF331
L×W×H: 3120×1805×2536 mm
3 modules / without side panels / wooden back / glass roof
ZPF332
ZPF332
L×W×H: 3152×1805×2536 mm
3 modules / 2x glass side panels / wooden back / glass roof
ZPF341
ZPF341
L×W×H: 3264×1805×2566 mm
3 modules / without side panels / wooden back / green roof
ZPF342
ZPF342
L×W×H: 3264×1805×2566 mm
3 modules / 2x glass side panels / wooden back / green roof
ZPF401
ZPF401
L×W×H: 4120×1805×2536 mm
4 modules / without side panels / glass back / glass roof
ZPF402
ZPF402
L×W×H: 4152×1805×2536 mm
4 modules / 2x glass side panel / glass back / glass roof
ZPF421
ZPF421
L×W×H: 4264×1805×2574 mm
4 modules / without side panels / glass back / green roof
ZPF422
ZPF422
L×W×H: 4264×1805×2574 mm
4 modules / 2x glass side panels / glass back / green roof
ZPF431
ZPF431
L×W×H: 4120×1805×2536 mm
4 modules / without side panels / wooden back / glass roof

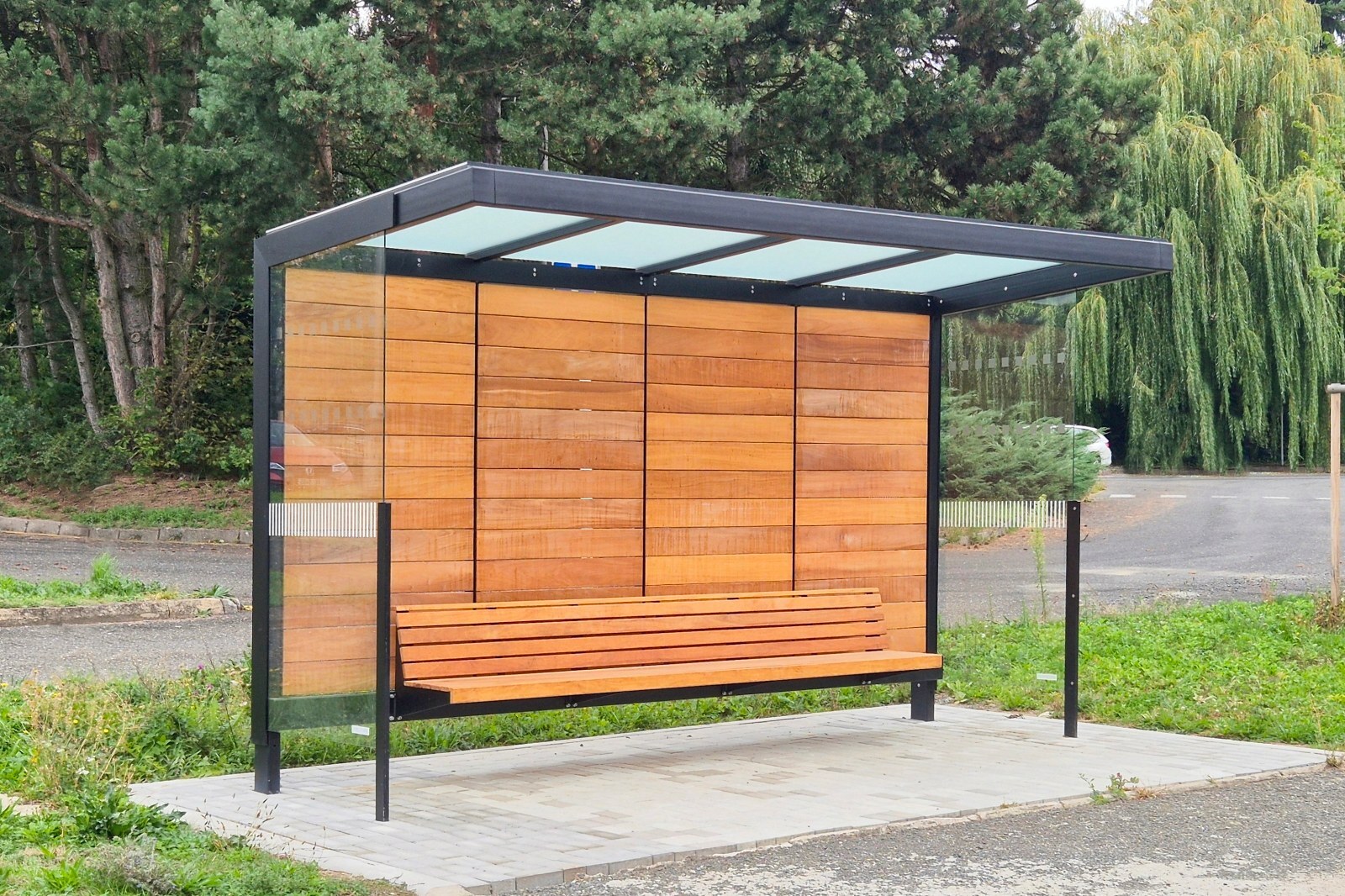

ZPF432
ZPF432
L×W×H: 4152×1805×2536 mm
4 modules / 2x glass side panel / wooden back / glass roof
ZPF441
ZPF441
L×W×H: 4264×1805×2566 mm
4 modules / without side panels / wooden back / green roof
ZPF442
ZPF442
L×W×H: 4264×1805×2566 mm
4 modules / 2x glass side panels / wooden back / green roof
ZPF601
ZPF601
L×W×H: 6120×1805×2536 mm
6 modules / without side panels / glass back / glass roof

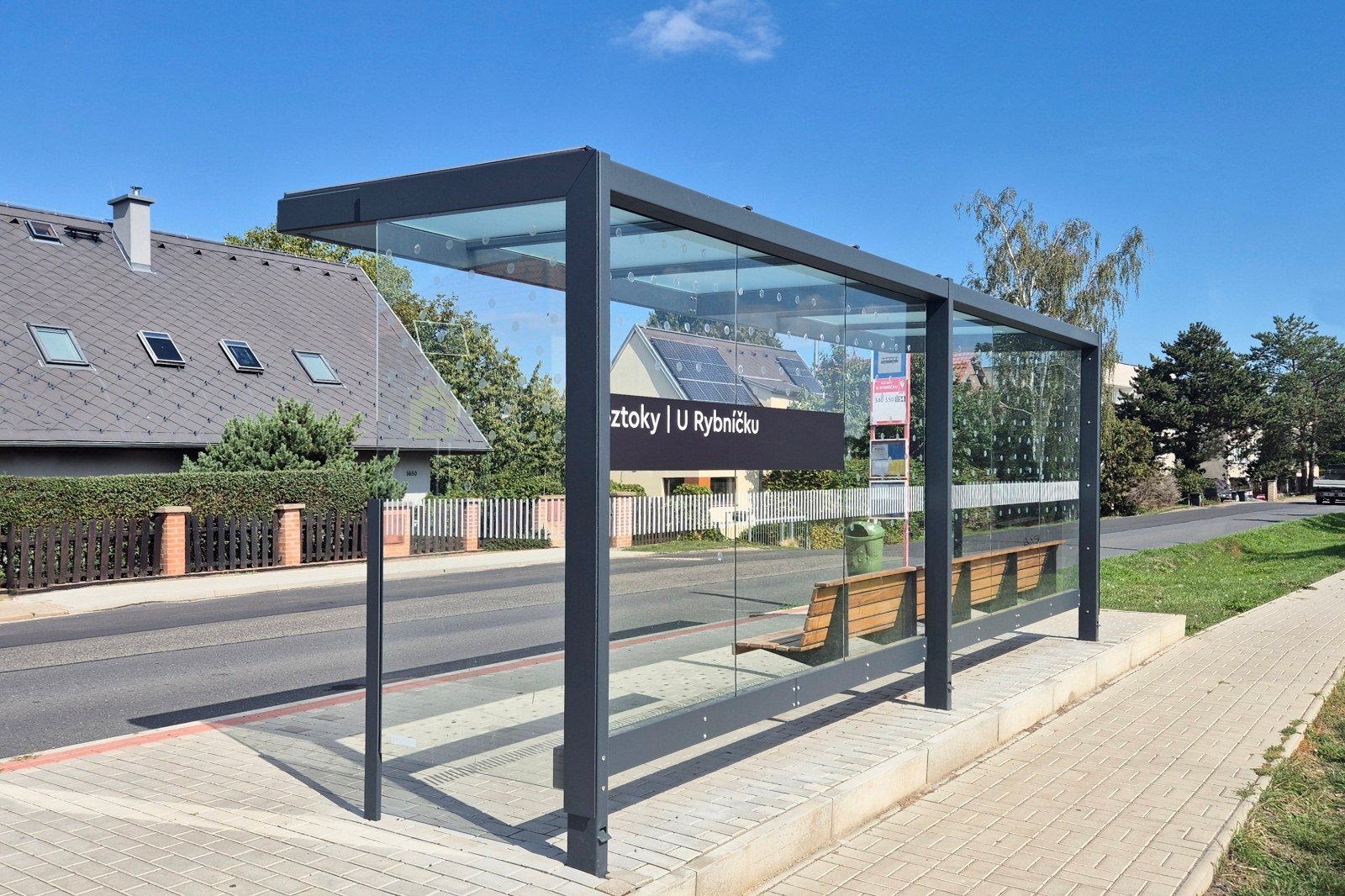

ZPF602
ZPF602
L×W×H: 6152×1805×2536 mm
6 modules / 2x glass side panel / glass back / glass roof
ZPF621
ZPF621
L×W×H: 6264×1805×2574 mm
6 modules / without side panels / glass back / green roof
ZPF622
ZPF622
L×W×H: 6264×1805×2574 mm
6 modules / 2x glass side panels / glass back / green roof
ZPF631
ZPF631
L×W×H: 6120×1805×2536 mm
6 modules / without side panels / wooden back / glass roof
ZPF632
ZPF632
L×W×H: 6152×1805×2536 mm
6 modules / 2x glass side panel / wooden back / glass roof
ZPF641
ZPF641
L×W×H: 6264×1805×2566 mm
6 modules / without side panels / wooden back / green roof
ZPF642
ZPF642
L×W×H: 6264×1805×2566 mm
6 modules / 2x glass side panel / glass back / green roof
