LUEDA

design Jan Padrnos

A classic element of an urban parterre in modern design. Square or circular tree grid with optional trunk protection. The frame of the tree grid consists of four joined segments, into which grates are embedded in the following variations: U-profiles, steel bands or steel grate. Designed for paved areas of pedestrian zones, squares and other places where there is no danger that vehicles heavier than 3.5 t would cross the tree grid.
The supporting structure made of hot-dip galvanized steel. There are four holes at the bottom part of the frame for anchoring to the base.

Design based on type

MLU111

MLU111

L×W×H: 1596 × 1596 × 0 mm / 155 kg

square grid / 4 segments / U profiles

MLU112

MLU112

L×W×H: 1596 × 1596 × 1400 mm / 163 kg

square grid / 4 segments / U profiles / trunk protection

MLU121

MLU121

L×W×H: 1596 × 1596 × 0 mm / 116 kg

square grid / 4 segments / webs

MLU122

MLU122

L×W×H: 1596 × 1596 × 1400 mm / 124 kg

square grid / 4 segments / webs / trunk protection

MLU511

MLU511

L×W×H: 1596 × 1596 × 0 mm / 111 kg

circular grid / 4 segments / U profiles

MLU512

MLU512

L×W×H: 1596 × 1596 × 1400 mm / 119 kg

circular grid / 4 segments / U profiles / trunk protection

MLU521

MLU521

L×W×H: 1596 × 1596 × 0 mm / 98 kg

circular grid / 4 segments / webs

MLU522

MLU522

L×W×H: 1596 × 1596 × 1400 mm / 106 kg

circular grid / 4 segments / webs / trunk protection

MLU131

MLU131

L×W×H: 1596 × 1596 × 0 mm / 84 kg

square grid / 4 segments / semi-grating

MLU132

MLU132

L×W×H: 1596 × 1596 × 1400 mm / 92 kg

square grid / 4 segments / semi-grate / trunk protection

Metal parts options
Download PDF sampler

Hot-dip zinc

Dimensions L×W×H
1596 × 1596 × 0 mm / 155 kg 1596 × 1596 × 1400 mm / 163 kg 1596 × 1596 × 0 mm / 116 kg 1596 × 1596 × 1400 mm / 124 kg 1596 × 1596 × 0 mm / 111 kg 1596 × 1596 × 1400 mm / 119 kg 1596 × 1596 × 0 mm / 98 kg 1596 × 1596 × 1400 mm / 106 kg 1596 × 1596 × 0 mm / 84 kg 1596 × 1596 × 1400 mm / 92 kg

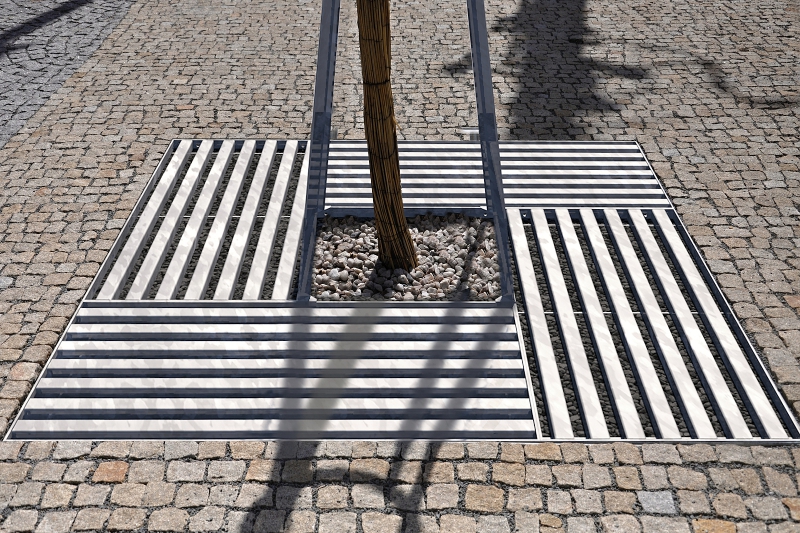

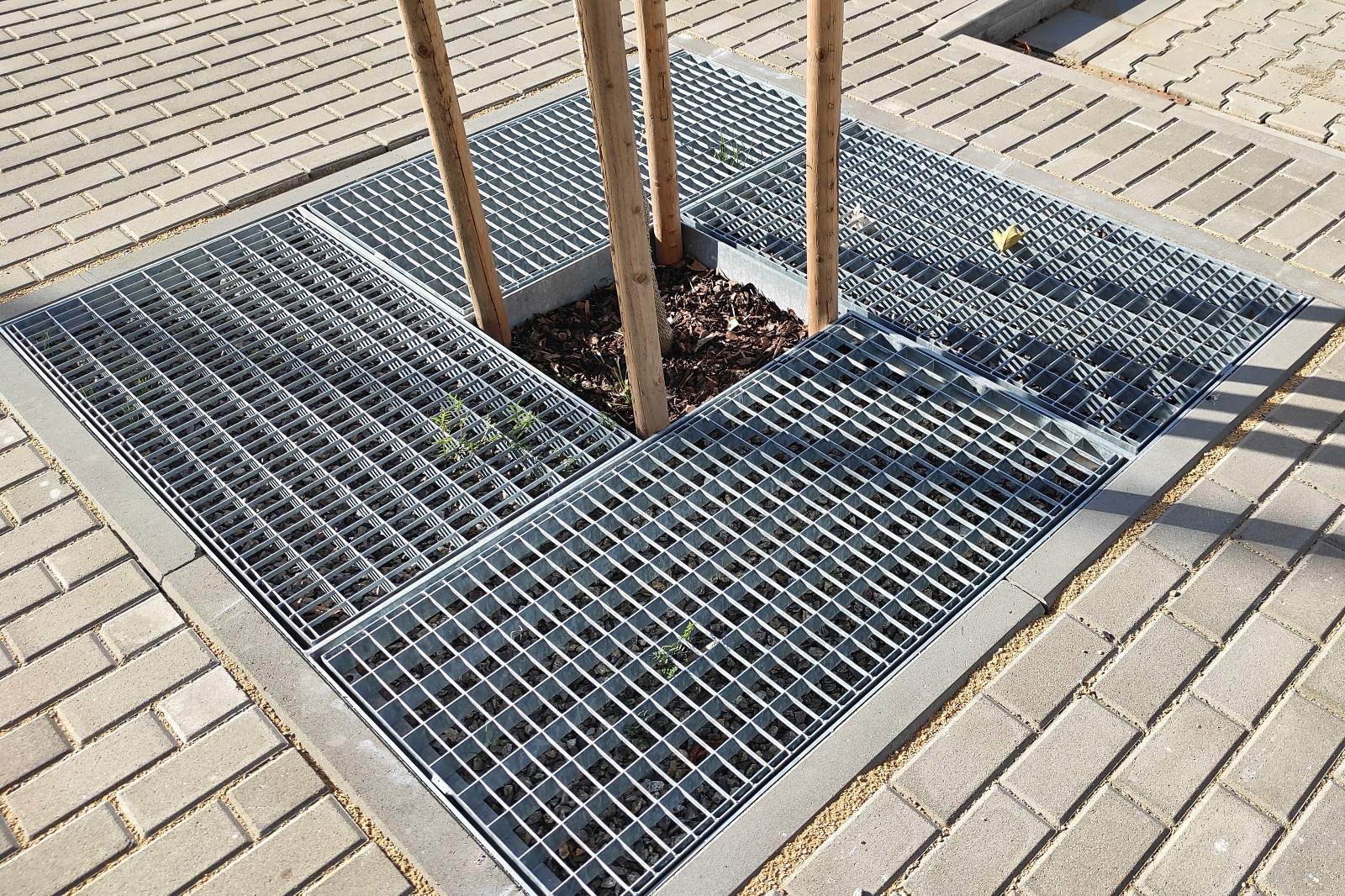

LUEDA tree grids in Soběšovice.
1
Tree trunk protection
Optional tree trunk protection preserves especially newly planted trees.
2
Variability
There are several materials to choose from (U-profiles, steel bands or steel grate) that guarantee a solution for each location.
3
Hot-dip zinc treatment
Hot-dip galvanized construction contributes to the longevity and durability of the product.
