BAS M

design Jan Padrnos

A simple litter bin series of lapidary shapes based on the basic geometric figures – cuboids and cylinders. The collection is inspired by BAS litter bins, however, perforated sheet metal is used for sheathing instead of solid wood. The series is produced in four designs: a square view with a volume of 70 and 40 liters, and also in a circular view on the plinth or central leg with a volume of 35 liters. All variations are available both with and without an up-lifting lid. The lid can be fitted with an ashtray with a cigarette extinguisher.
Its galvanized steel structure is treated with powder coating. At the bottom part of the litter bin, there are four holes for anchoring to the base.



Design based on type

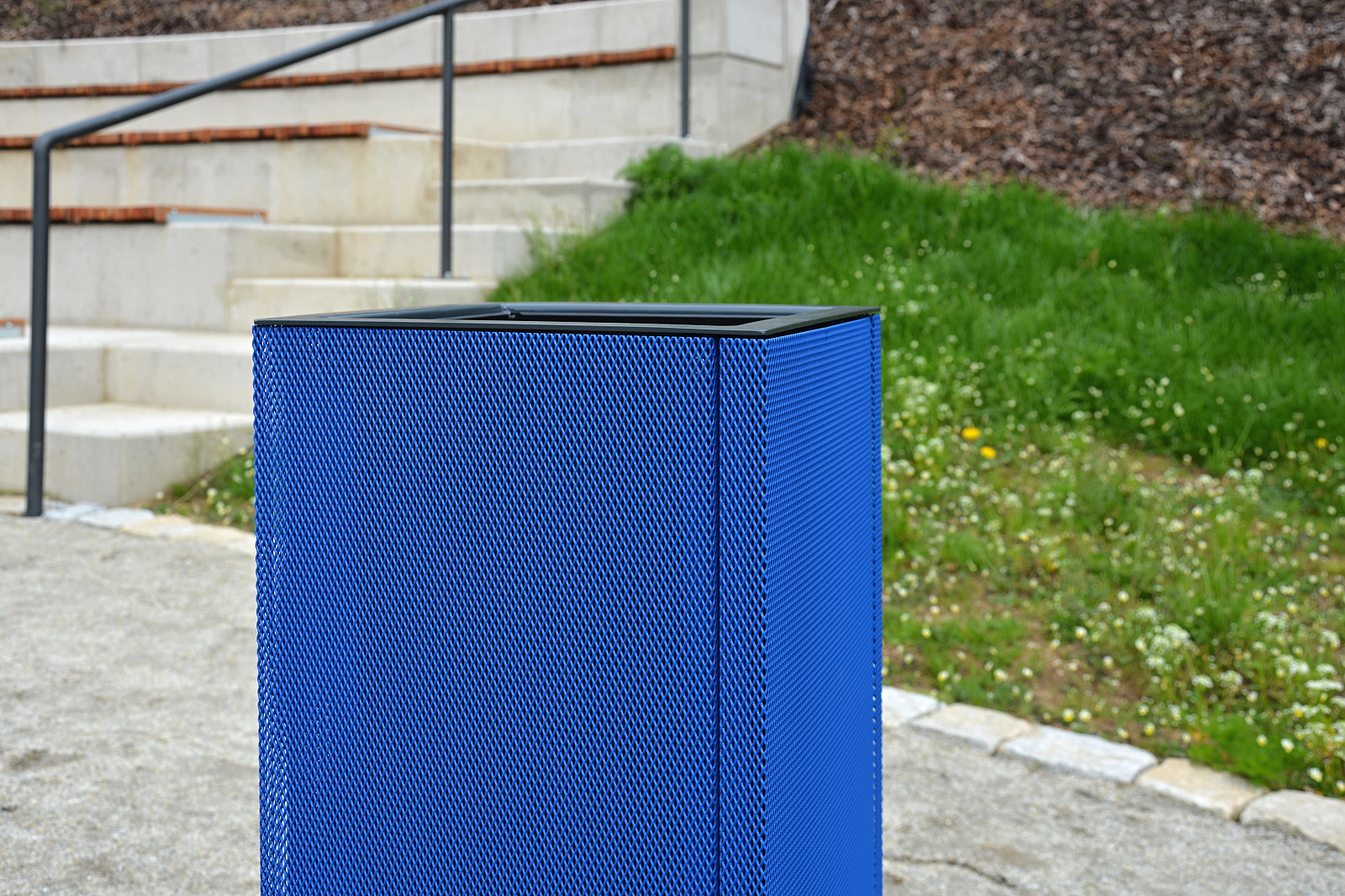

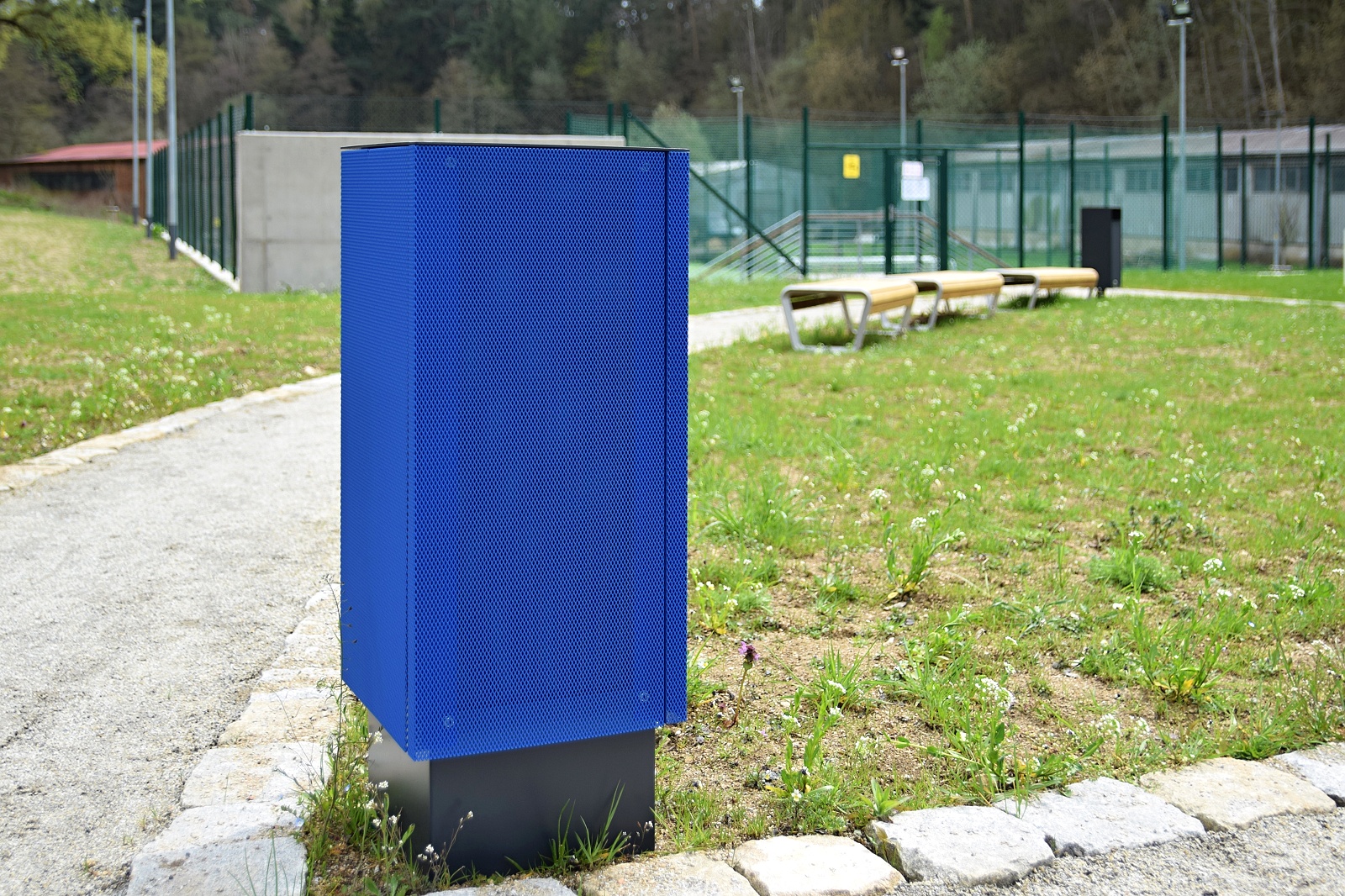

KBA11

KBA11

L×W×H: 312×312×800 mm / 40 l / 18 kg

metal construction on plinth / cladding of expanded metal

KBA12

KBA12

L×W×H: 312×312×940 mm / 40 l / 20 kg

metal construction on plinth / cladding of expanded metal / roof

KBA13

KBA13

L×W×H: 385×385×800 mm / 70 l / 27 kg

metal construction on plinth / cladding of expanded metal

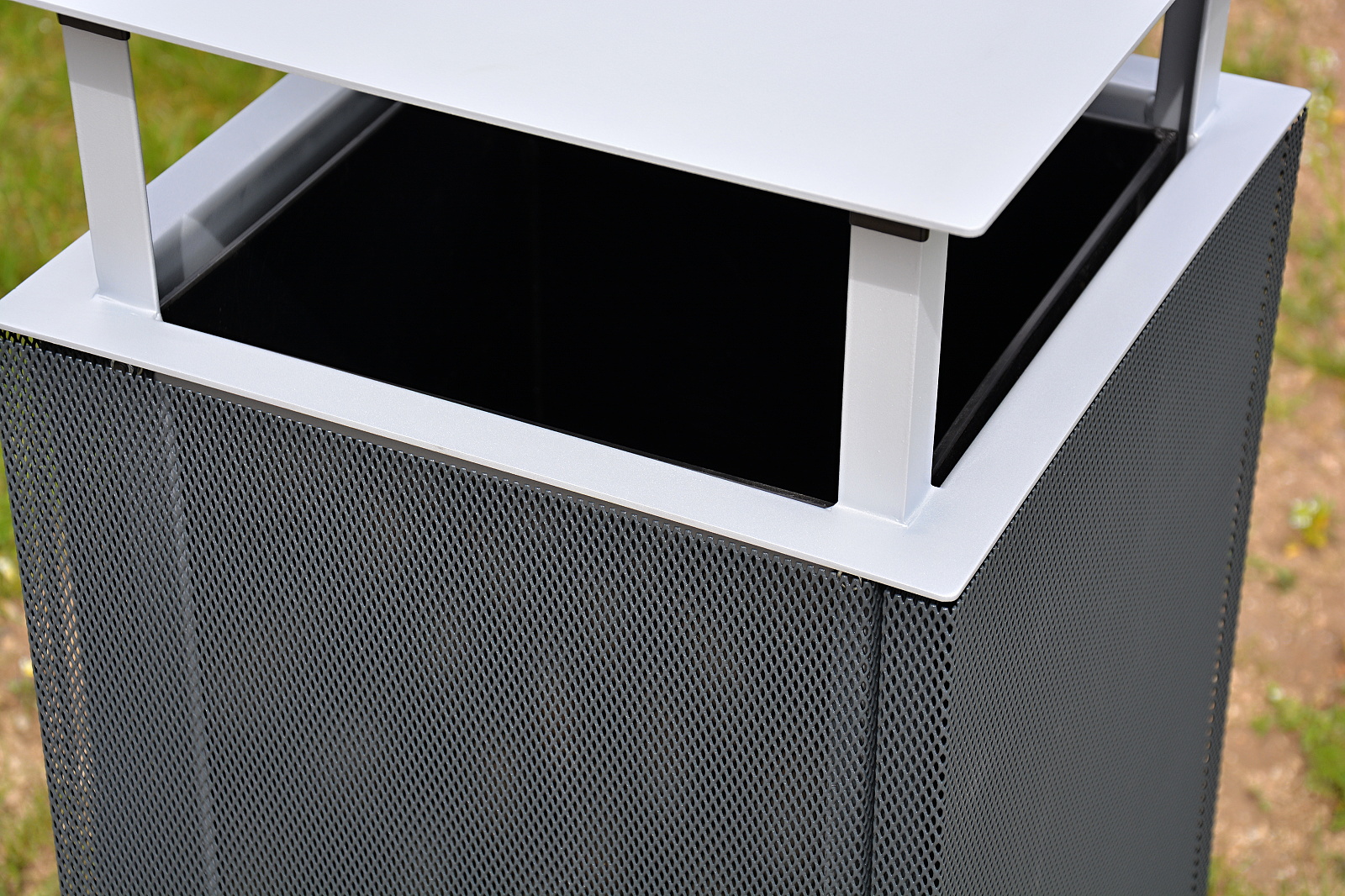

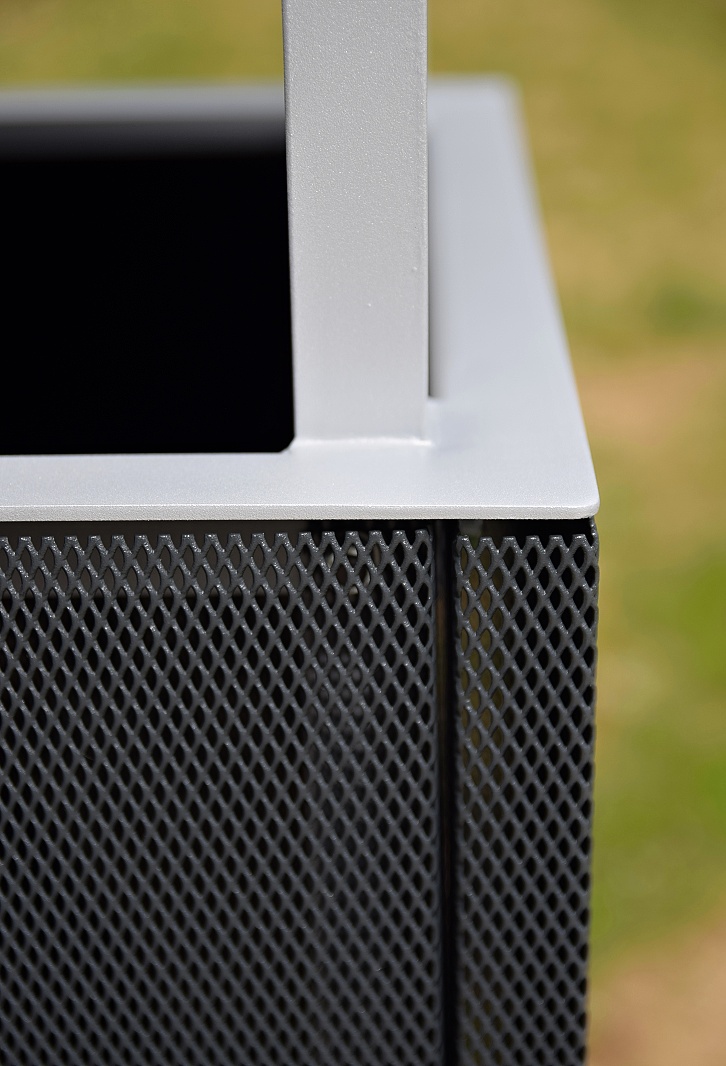

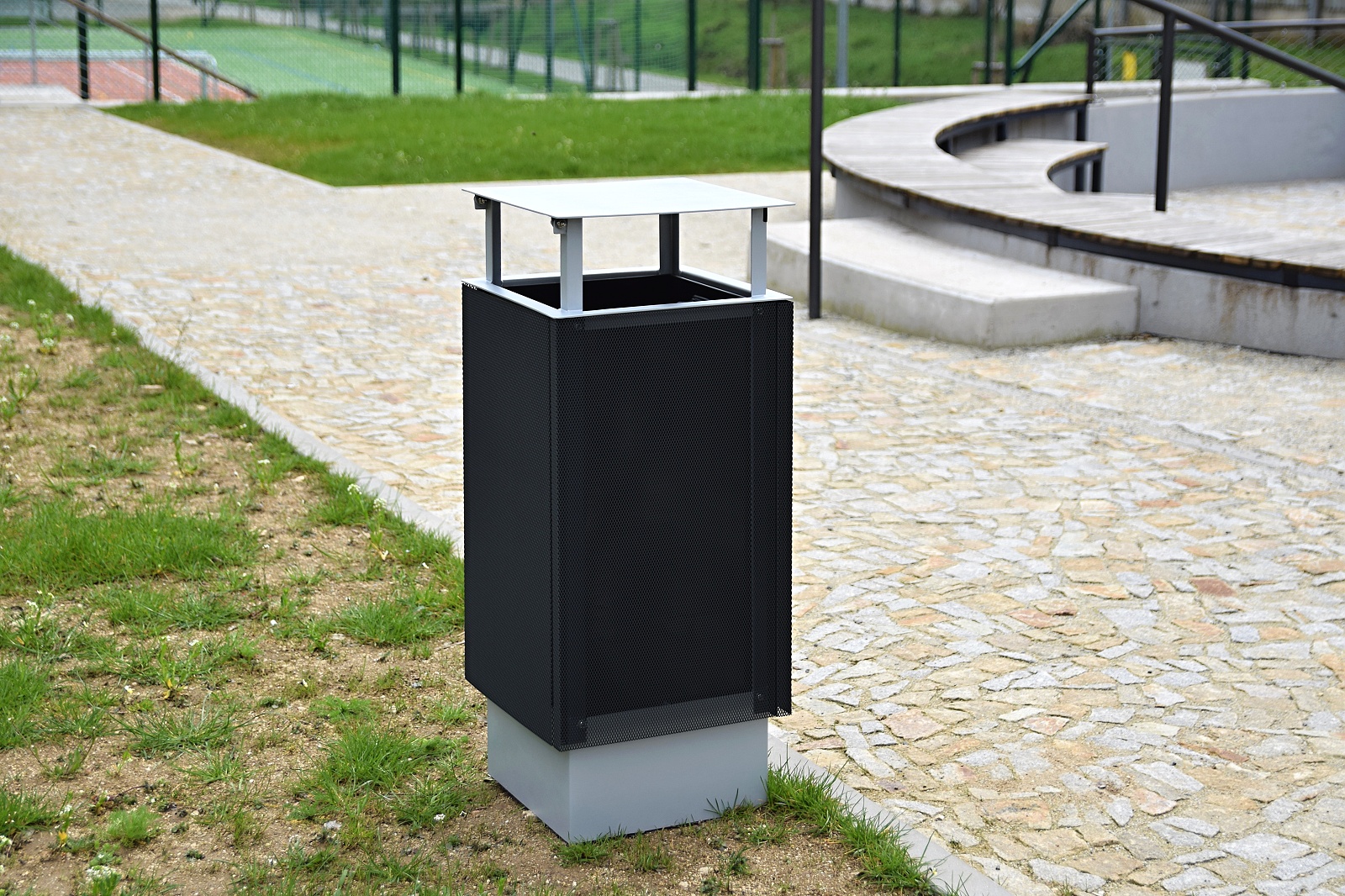

KBA14

KBA14

L×W×H: 385×385×940 mm / 70 l / 29 kg

metal construction on plinth / cladding of expanded metal / roof

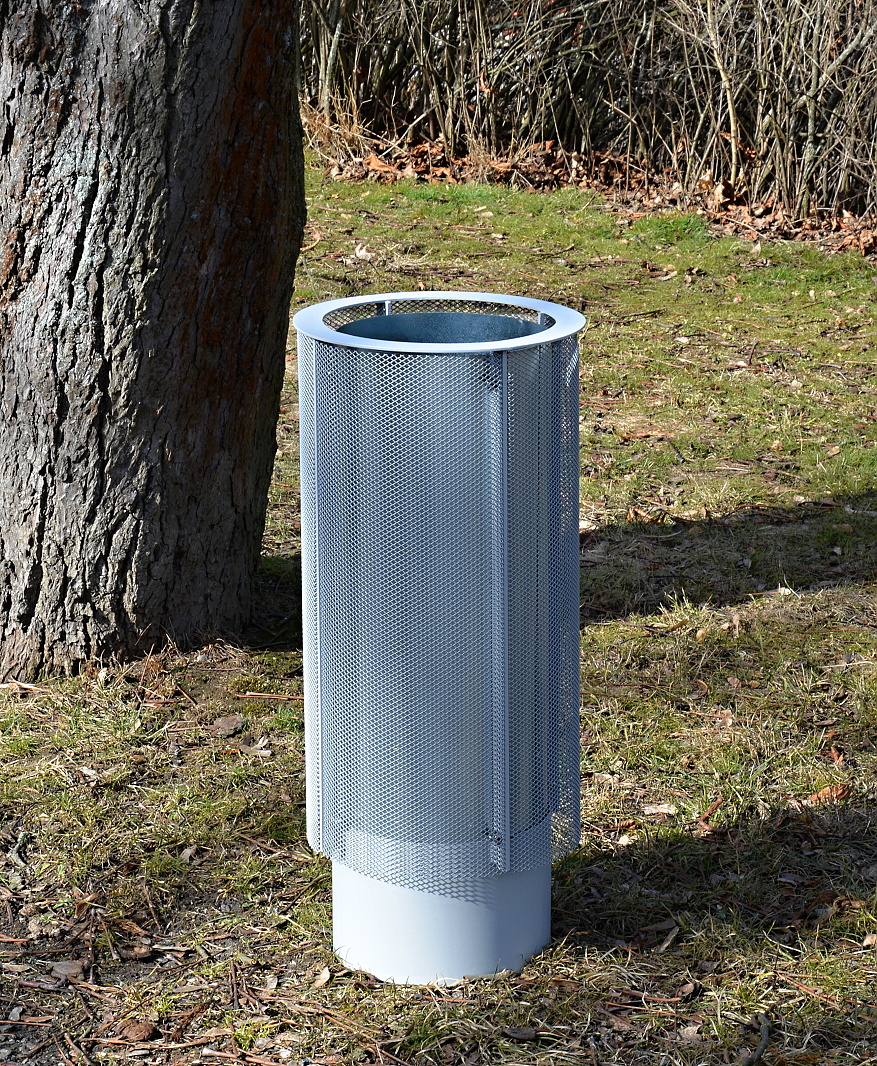

KBA15

KBA15

L×W×H: ø 342×800 mm / 35 l / 13,5 kg

metal construction on plinth / cladding of expanded metal

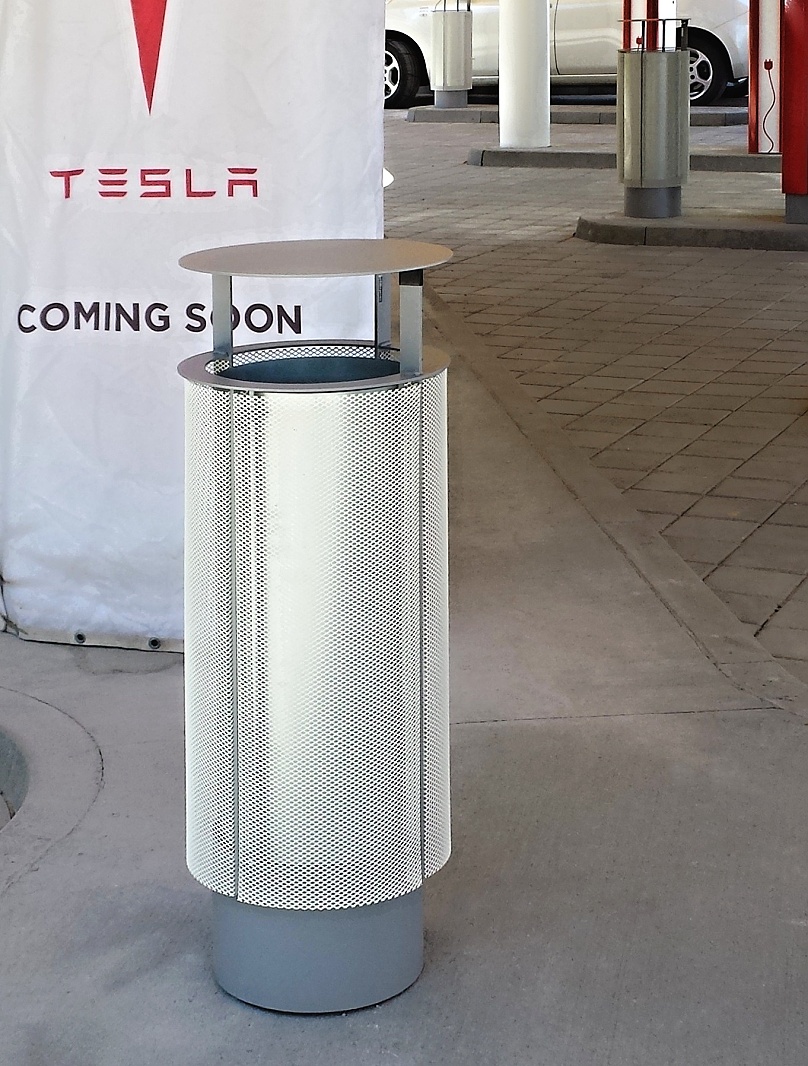

KBA16

KBA16

L×W×H: ø 342×940 mm / 35 l / 15 kg

metal construction on plinth / cladding of expanded metal / roof

KBA17

KBA17

L×W×H: ø 342×800 mm / 35 l / 13 kg

metal construction on the leg / expanded metal cladding

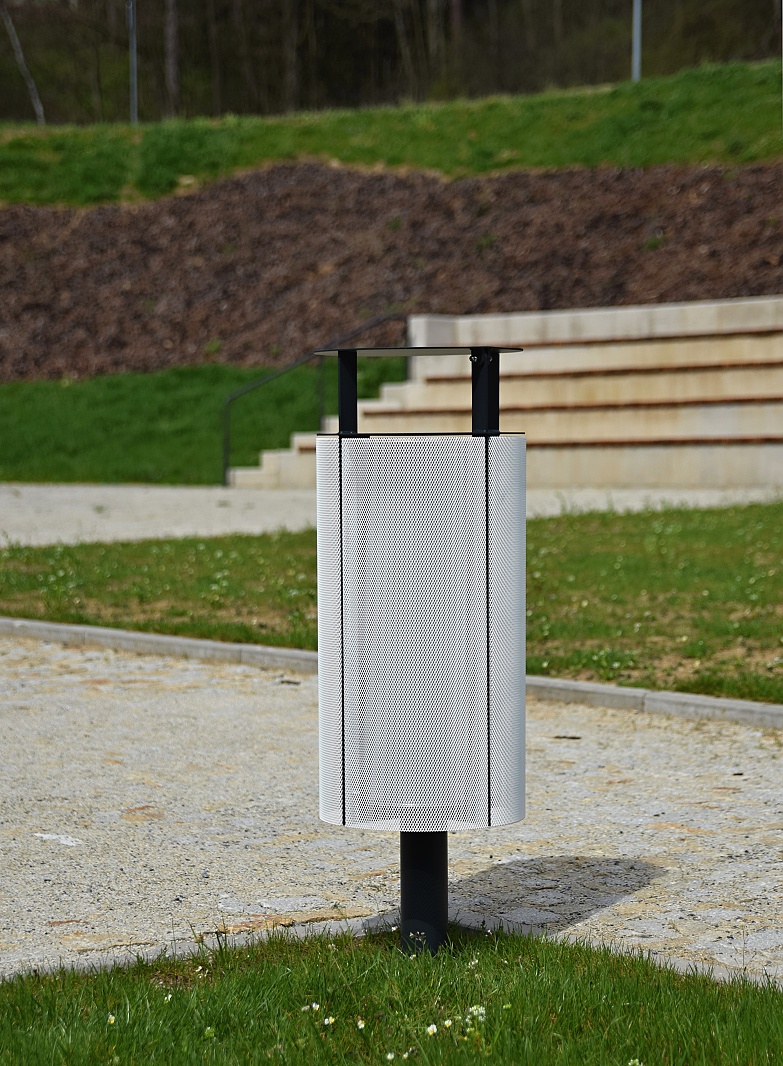

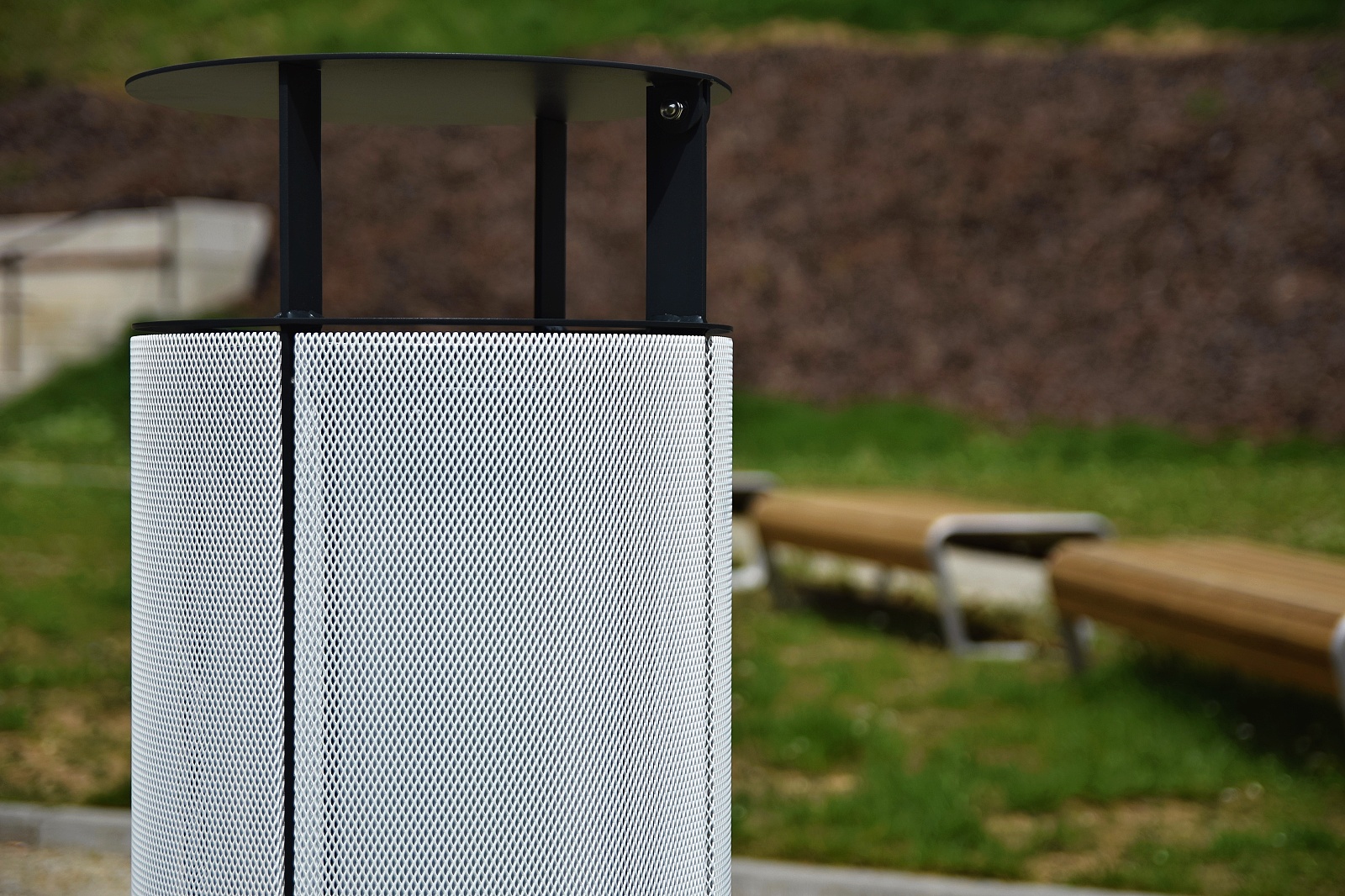

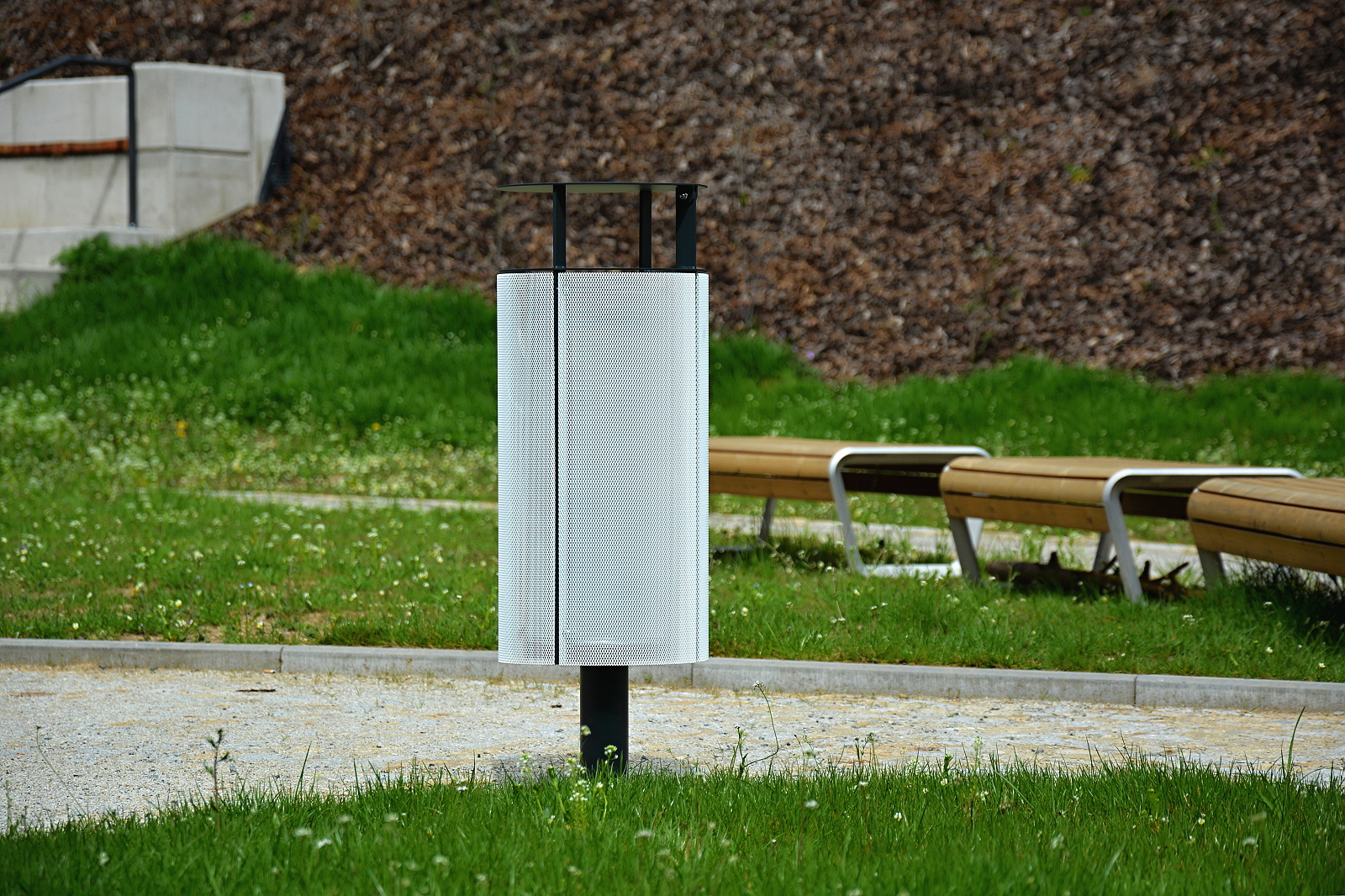

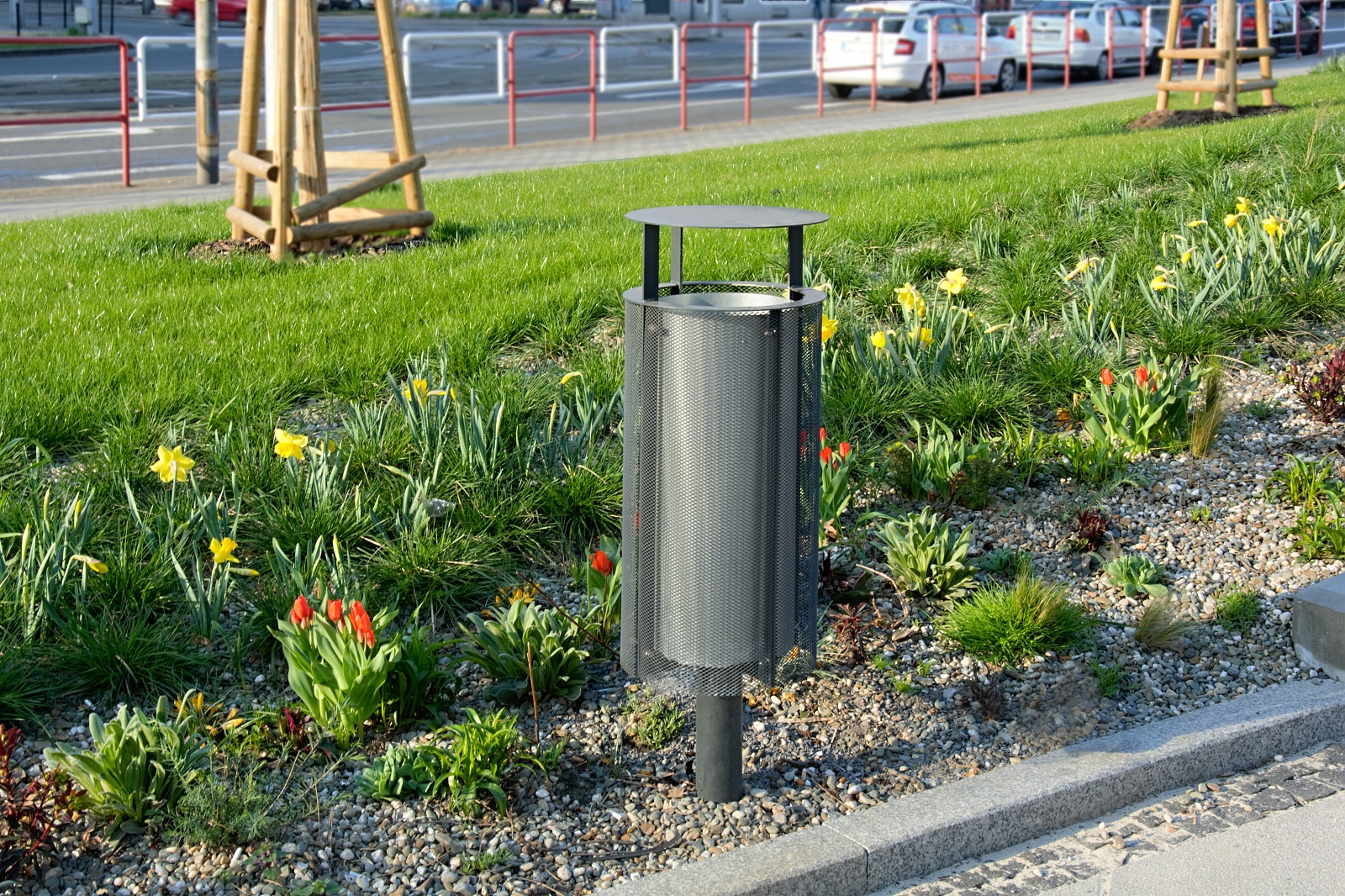

KBA18

KBA18

L×W×H: ø 342×940 mm / 35 l / 14,5 kg

metal construction on the leg / expanded metal cladding / roof

Metal parts options
Download PDF sampler

RAL 7016

RAL 9005

RAL 9006

RAL 9007

Dimensions L×W×H
312×312×800 mm / 40 l / 18 kg 312×312×940 mm / 40 l / 20 kg 385×385×800 mm / 70 l / 27 kg 385×385×940 mm / 70 l / 29 kg ø 342×800 mm / 35 l / 13,5 kg ø 342×940 mm / 35 l / 15 kg ø 342×800 mm / 35 l / 13 kg ø 342×940 mm / 35 l / 14,5 kg
Sheathing of BAS M litter bin is made of perforated sheet metal.
1
Variability
Variety of designs including various materials, shapes, volume variations and colors.
2
Favorable price
The simple design allows low production costs and thus a favorable price for customers.
3
Ashtray with a cigarette extinguisher
The version with a roof can be completed with a stainless steel ashtray with a cigarette extinguisher.
