TOMI
design Jan Padrnos

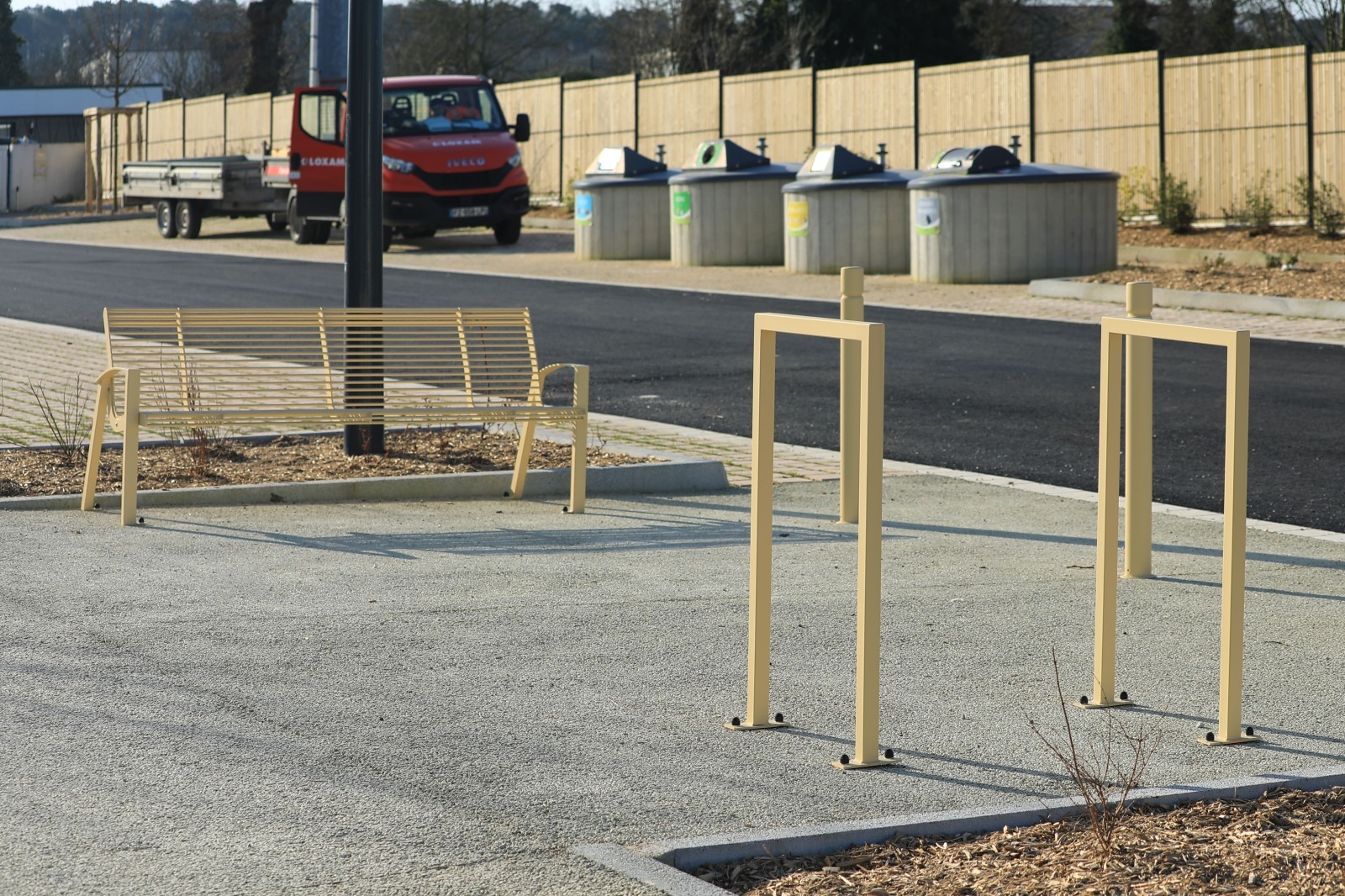

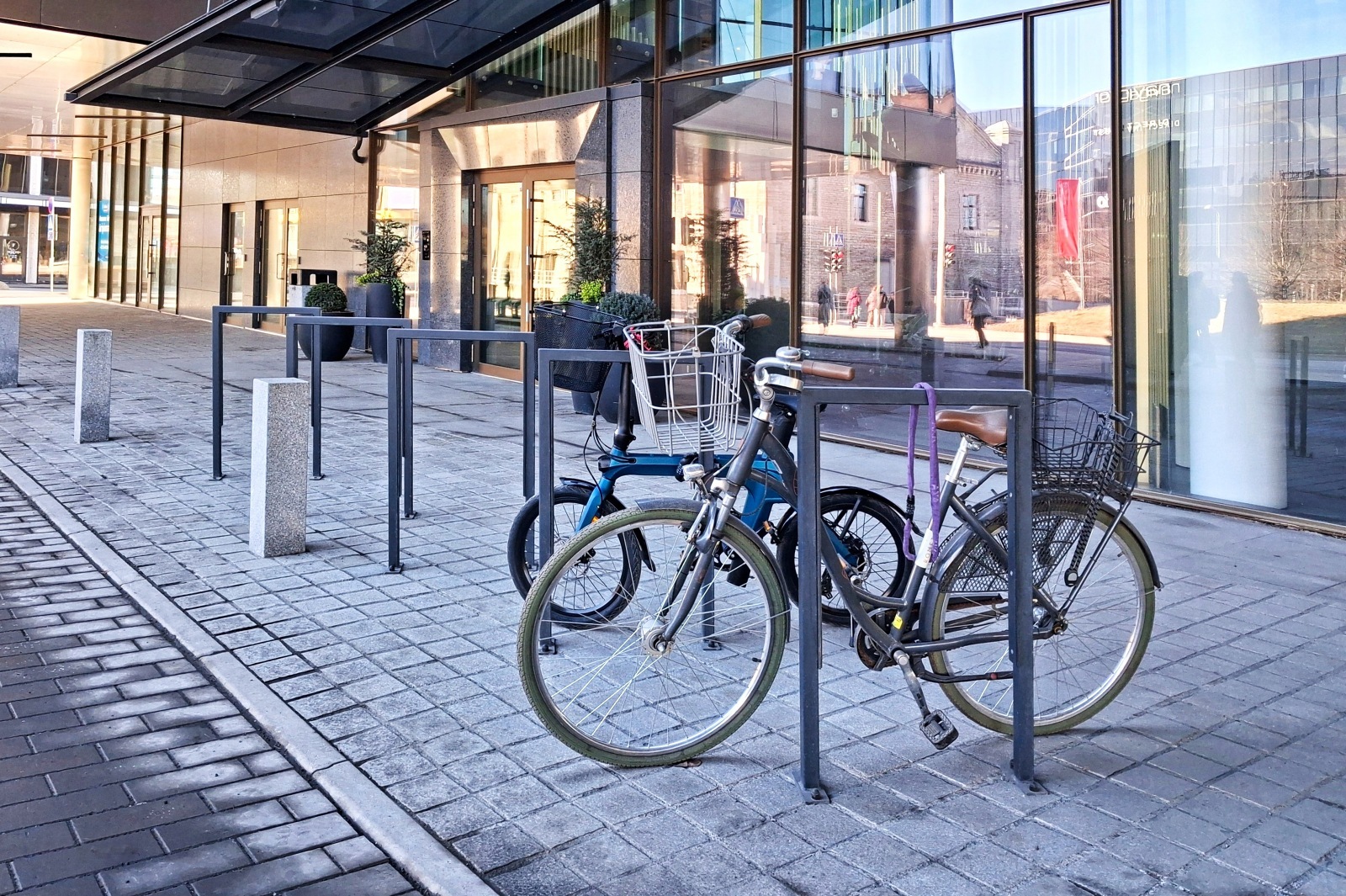

TOMI is a simple parking system for bicycles. The construction is made of a steel weldment of square cross-section, to which can be attached a special rubber profile (to the inner vertical sides). The rubber strip protects a bicycle frame from possible damage. TOMI bike stand is offered in two sizes, both with the possibility of adding a rubber strip. The bike stand can be placed in an open space or, for example, in bicycle shelters.
The supporting structure made of galvanized steel is treated with powder coating. The rubber profile is made of EPDM material and it is resistant to UV light. At the bottom part, there are anchoring plates for anchoring to the base.
SKT3 - Files to download
SKT3 2D drawing (jpg)
SKT3 3D perspective (jpg)
You have to log in for downloading.
TOMI 3D (rar)
SKT3 anchoring (rar)
SKT3 product data sheet (pdf)
Log in
Register
SKT4 - Files to download
SKT4 2D drawing (jpg)
SKT4 3D perspective (jpg)
You have to log in for downloading.
TOMI 3D (rar)
SKT4 anchoring (rar)
SKT4 product data sheet (pdf)
Log in
Register
SKT5 - Files to download
SKT5 2D drawing (jpg)
SKT5 3D perspective (jpg)
You have to log in for downloading.
TOMI 3D (rar)
SKT5 anchoring (rar)
SKT5 product data sheet (pdf)
Log in
Register
SKT6 - Files to download
SKT6 2D drawing (jpg)
SKT6 3D perspective (jpg)
You have to log in for downloading.
TOMI 3D (rar)
SKT6 anchoring (rar)
SKT6 product data sheet (pdf)
Log in
Register
Design based on type

SKT3

SKT4

SKT5

SKT6
Metal parts options
Dimensions L×W×H
400×40×900 mm
400×50×900 mm
600×40×900 mm
600×50×900 mm
1
Kotvení
Podzemí platle umožňují rychlé ukotvení stojanu na místě.
2
Ochrana laku kola
Lamela z odolné EPDM pryže bezpečně chrání lak jízdních kol proti poškození.
3
Příznivá cena
Jednoduchá konstrukce stojanu umožňuje nízké náklady na výrobu a tím i příznivou cenu pro zákazníky.
