CDB

design by Jan Padrnos

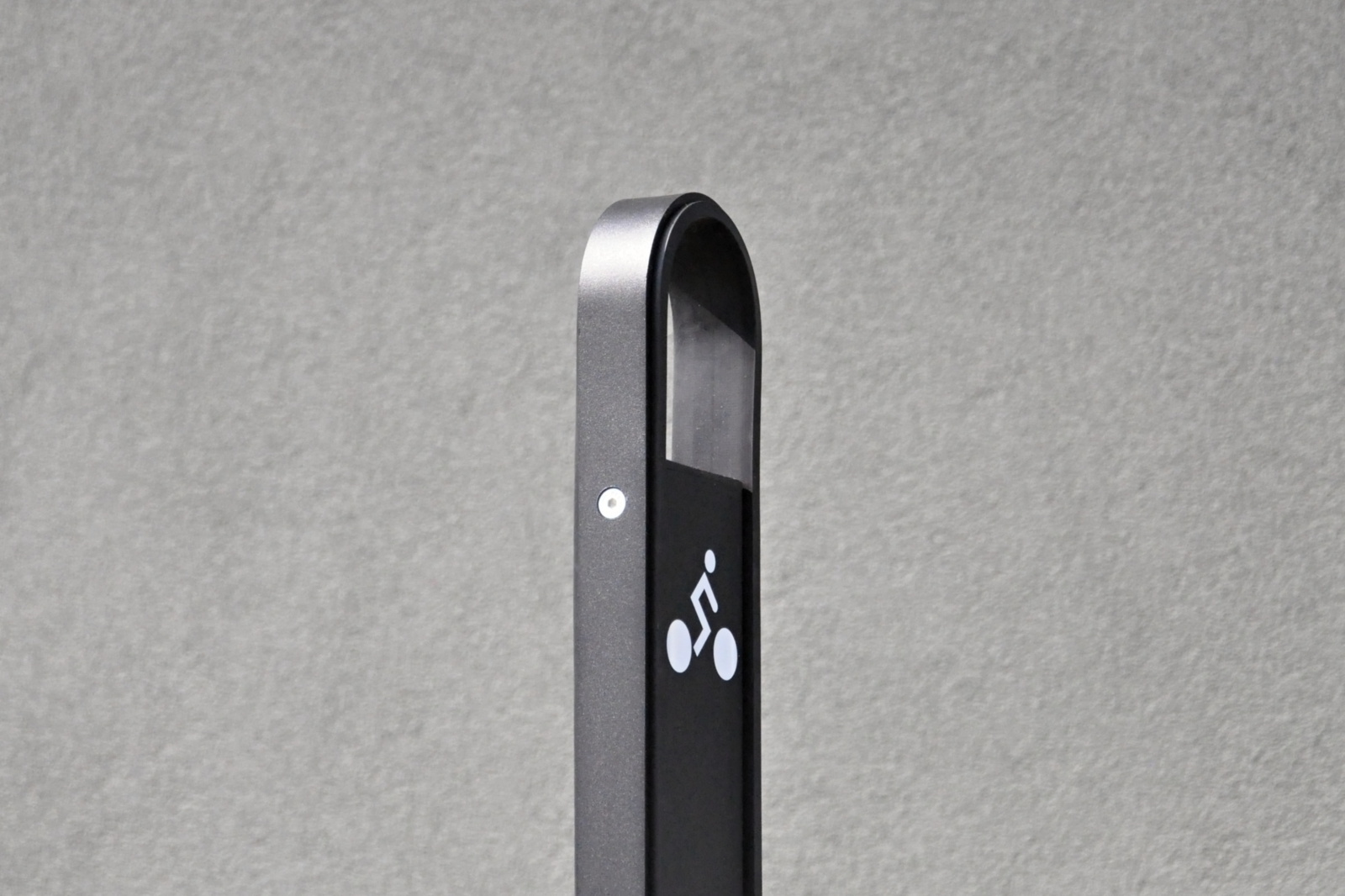

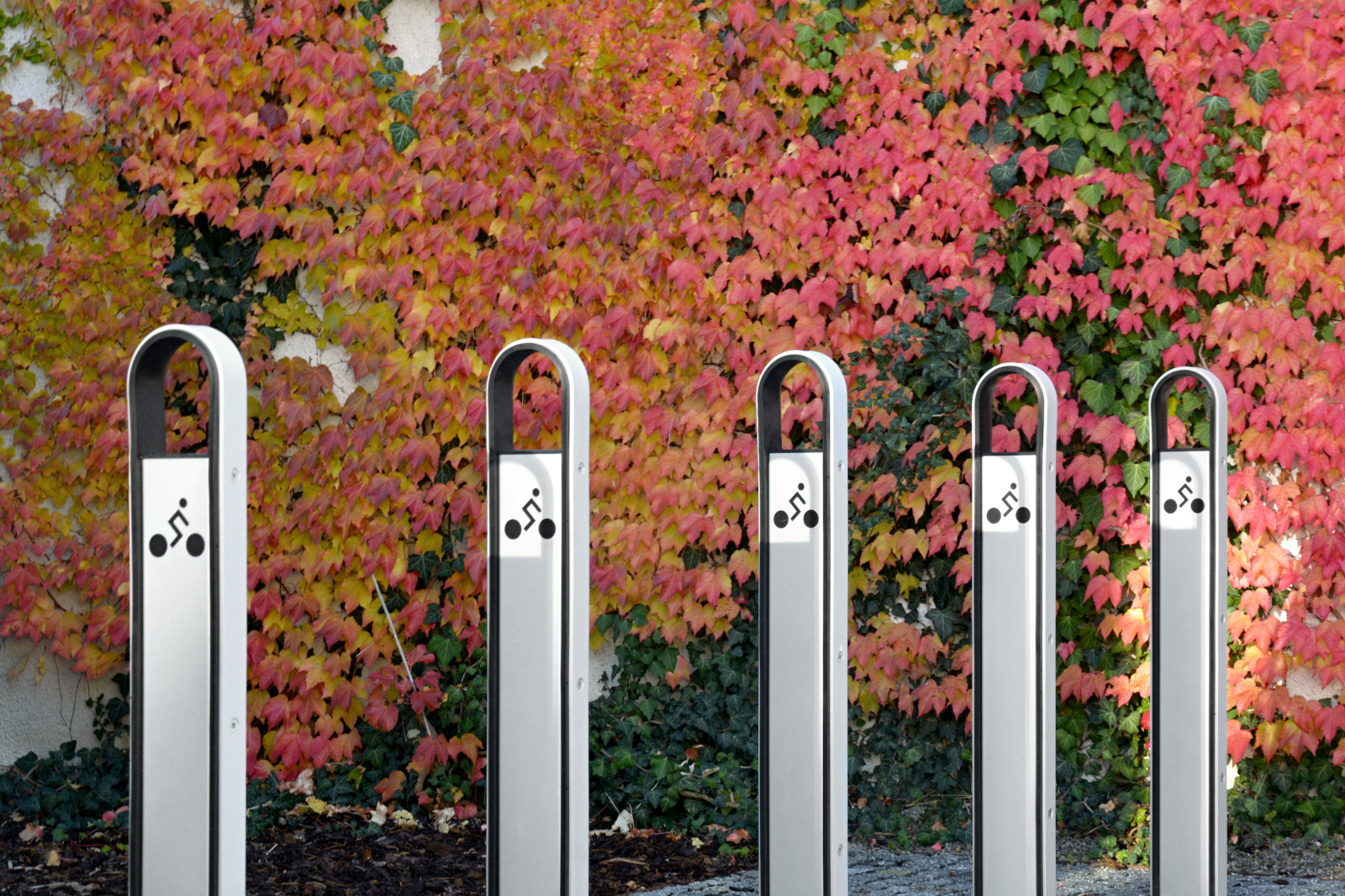

A supporting parking pillar for bicycles. The basic element is a steel weldment to which a rubber strip is attached. The rubber strip protects a bicycle frame from possible damage when it touches the metal structure of the parking pillar. The hole located in the top part is used for a bicycle lock. There is a cyclist´s icon located under the hole used for a bicycle lock. If requested, it is possible to have it changed to your city symbol.
The supporting structure made of galvanized steel is treated with powder coating. The rubber strip is made of EPDM material and is resistant to UV light.

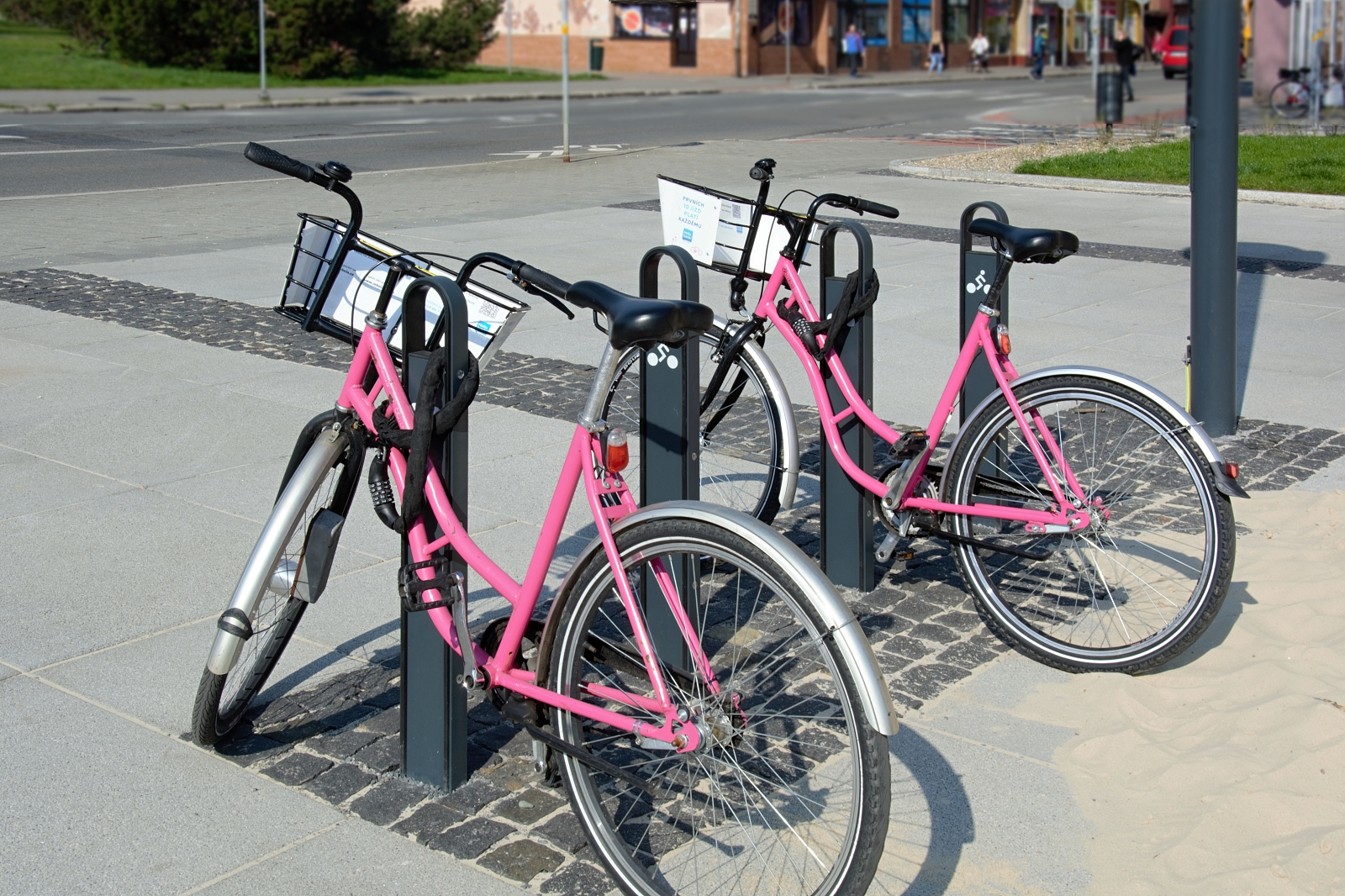

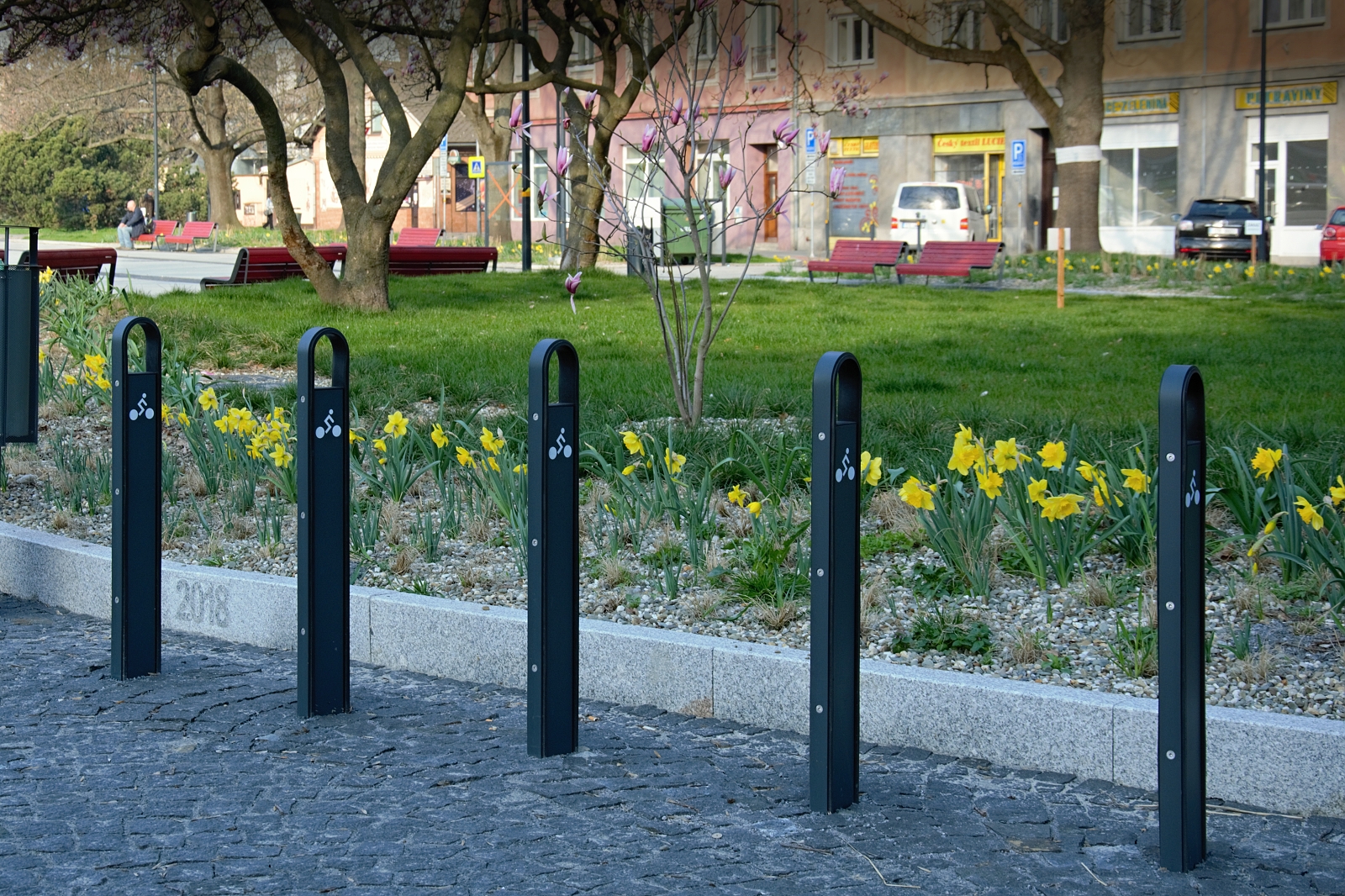

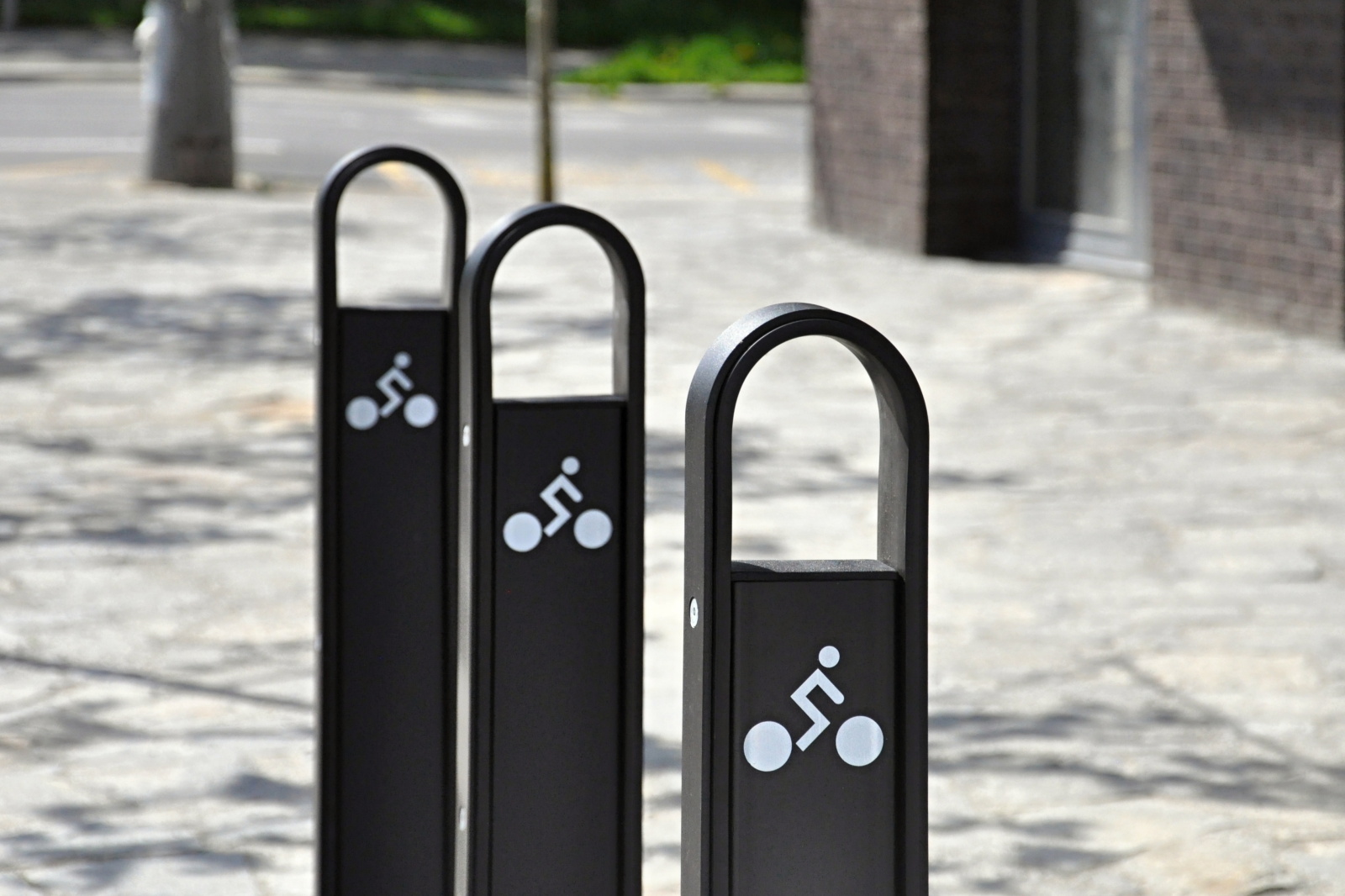

CDB bicycle racks are suitable for busy urban areas, such as Ostrava, as well as rural locations, like Číměř in the Vysočina region.

SKC1 - Files to download

SKC1 2D drawing (jpg) SKC1 3D perspective (jpg)

CDB 3D (rar) SKC1 anchoring (rar) SKC1 product data sheet (pdf) Register

Design based on type

SKC1

L×W×H: 130×50×940 mm / 12 kg

stand with rubber profile

Metal parts options

Download PDF sampler

RAL 9006

RAL 9007

RAL 7016

RAL 9005

RAL 9003

RAL 1001

RAL 7006

Shade of Corten

RAL 1021

RAL 1033

RAL 2008

RAL 3003

RAL 5024

RAL 6034

RAL 6021

RAL 6010

Dimensions L×W×H

130×50×940 mm / 12 kg

Demand

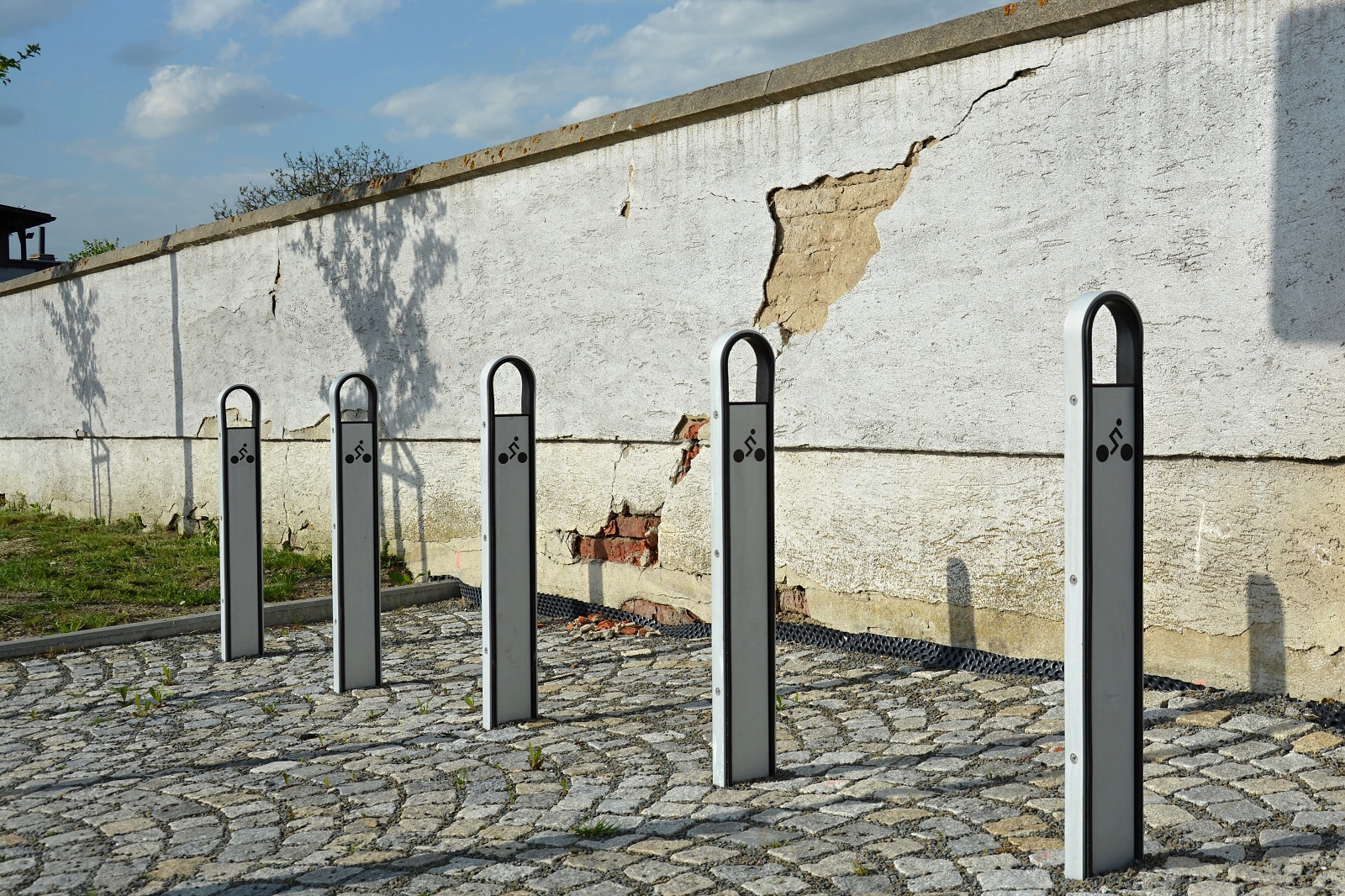

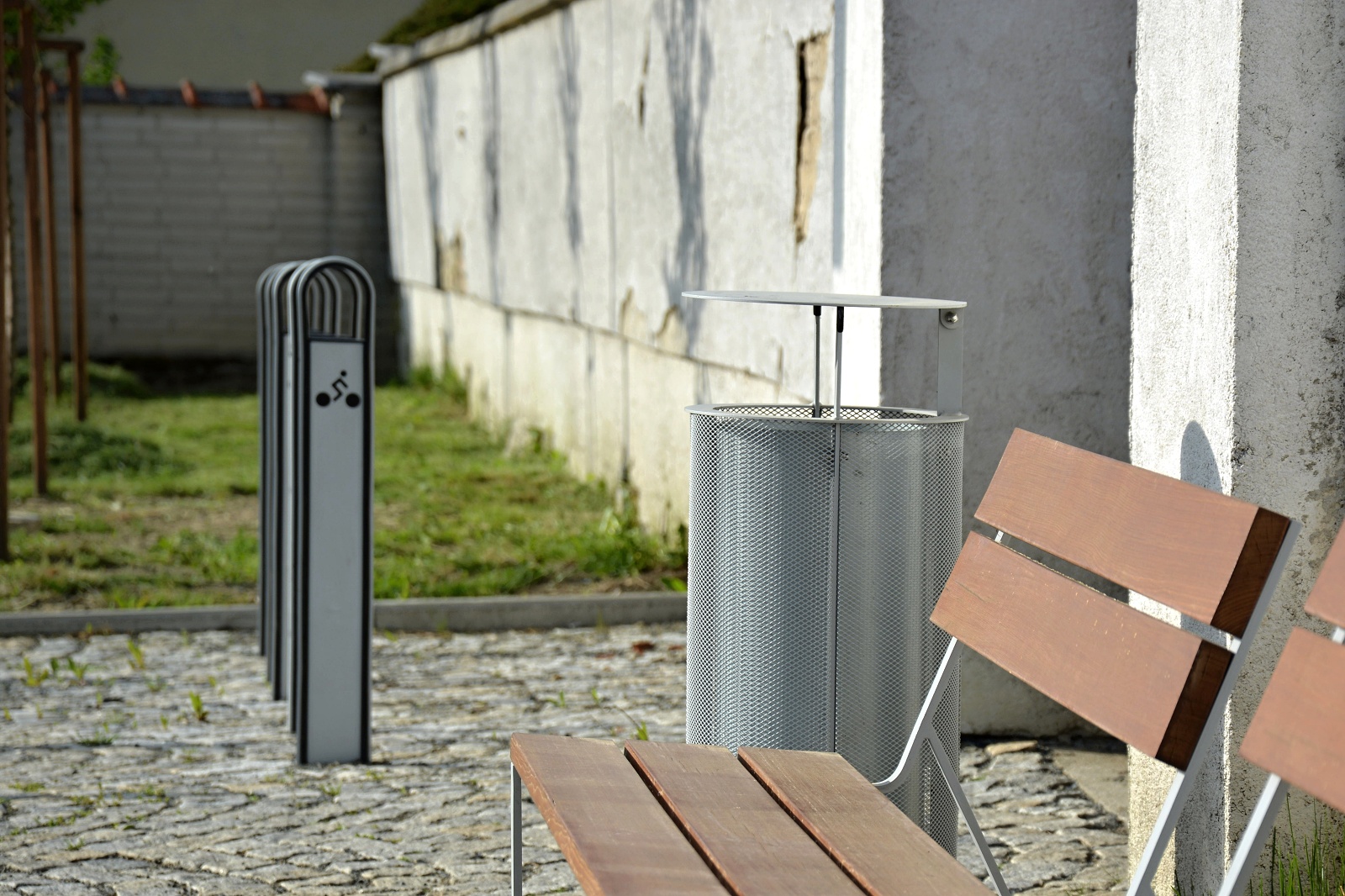

CDB stands in front of Číměř chapel.

Protection of the bicycle paint

The lamella made of EPDM rubber prevents the bicycle paint from its possible contact with the metal part of the pillar, as well as it prevents a bicycle itself from its possible damage.

Application of the city emblem

It is possible to apply a logo or city emblem on the place of cyclist´s pictogram. The clear and vertical shape offers the possibility to use a barrier post.

Hidden anchoring

Hidden anchoring under the surface makes this support post difficult to steal.
