D.N.A. ASH
design by Jan Padrnos

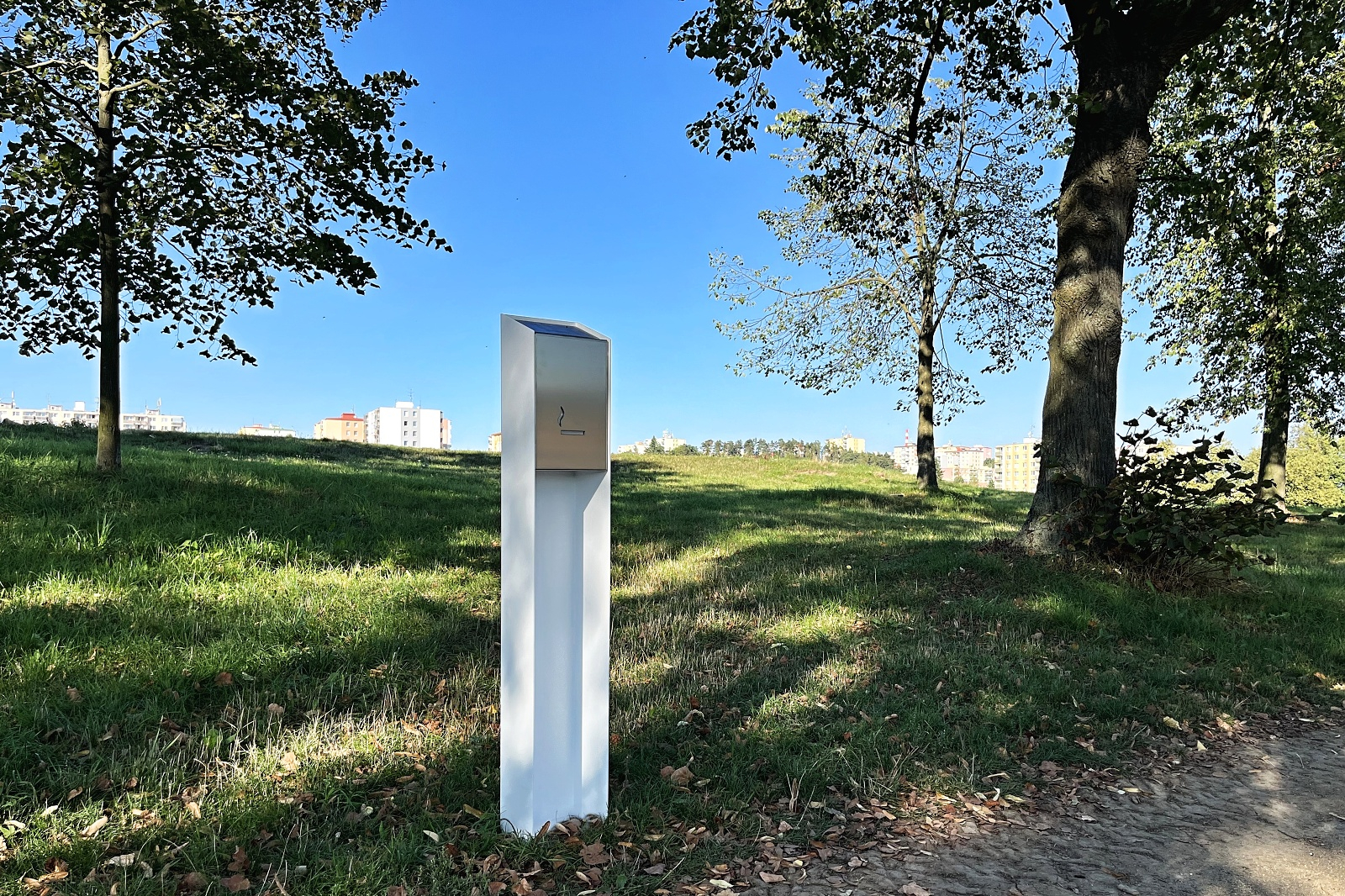

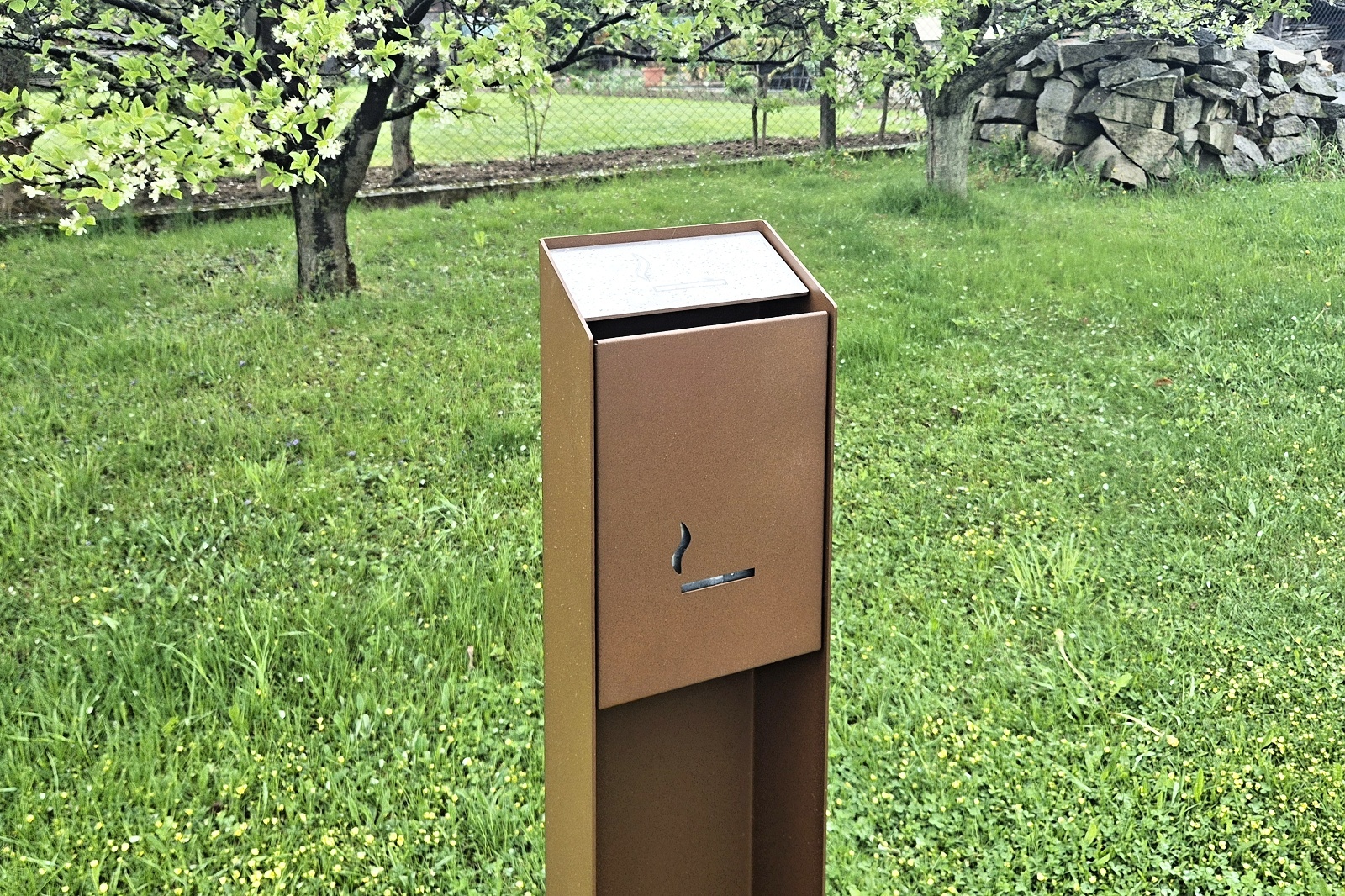

Ashtray with stainless steel cigarette extinguisher D.N.A ASH. Elegant and robust construction in a chic design is ideal for use in parks, near traffic structures, in front of public buildings, and wherever there are still fellow smokers. The variant under the code KDA102 also includes an integrated lockable waste bin at the bottom with a removable 10l galvanised container.
The galvanized supporting structure is treated with powder coating. The cover panel is made of galvanised sheet metal treated with powder-coating or stainless steel sheet metal.
KDA101 - Files to download
KDA101 2D drawing (jpg) KDA101 3D perspective (jpg)
You have to log in for downloading.
D.N.A. ASH 3D (zip) KDA101 anchoring (pdf) D.N.A. ASH product sheet (pdf)
Log in
Register
KDA102 - Files to download
KDA102 2D drawing (jpg) KDA102 3D perspective (jpg)
You have to log in for downloading.
D.N.A. ASH 3D (zip) KDA102 anchoring (pdf) KDA102 product data sheet (pdf)
Log in
Register
Design based on type
KDA101
KDA101
L×W×H: 140x208x1060 mm
metal construction / stainless steel door
KDA102
KDA102
L×W×H: 140x208x1060 mm
metal construction / stainless steel door / removable galvanized container
Metal parts options
Download PDF sampler
RAL 9006
RAL 9007
RAL 7016
RAL 9005
RAL 9003
RAL 1001
RAL 7006
Shade of Corten
RAL 1021
RAL 1033
RAL 2008
RAL 3003
RAL 5024
RAL 6034
RAL 6021
RAL 6010
Dimensions L×W×H
140x208x1060 mm
140x208x1060 mm
Elegant product design that complements public spaces.
1
Sleek construction
Thanks to its sleek design, the ashtray does not interfere with the main entrances to buildings.
2
Elegant design
The elegant design is particularly useful in new business parks and shopping centres.
3
Easy maintenance
The inner galvanised container can be easily emptied after unlocking the steel cable.
